Electric Solenoid Valve- 1/4" 110V AC Brass Body Normally Open, NBR SEAL

$25.99
In stock
SKU
JFSV00083

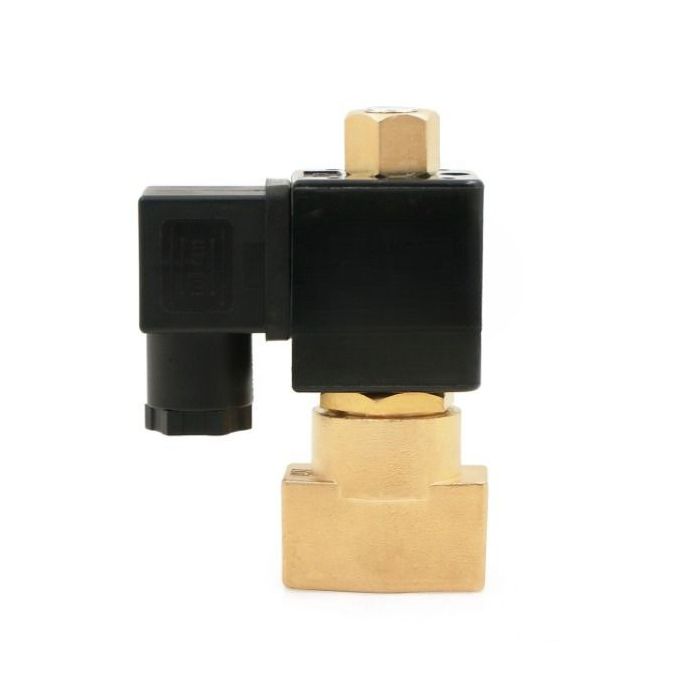

Our electric solenoid valve features a durable brass body with 1/4" female threaded connections and nitrile rubber seals. It is suitable for a wide range of applications including hot or cold water, natural gas, air, very low viscosity fluids, and oils. The valve has an IP65 rating, making it resistant to water spray, but it is recommended to enclose it in protective housing if permanently installed outdoors. Please note that it is not suitable for underwater use. Customers commonly use this valve for various projects such as DIY tasks, moderate temperature applications, aquarium water exchange, air horn operation, and bleeding moisture from air tanks.

Specifications:

  • Pipe Size: 1/4"
  • Flow Aperture: 2.0 mm
  • Body Material: Brass
  • Gasket/Diaphragm/Seal: NBR
  • Operation Type: Direct Lift Valve
  • Operation Mode: Normally Open
  • Voltage: AC 110V ± 10%
  • Power rating: 13.4 VA
  • Suitable Media: Air, water, diesel oil, kerosene, etc.
  • Operational pressure range: Air/Water: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar (0 to 72 PSI)
  • Flow capacity: 0.14 GPM of water at 60 °F with a pressure drop of 1 PSI
  • Flow value: 0.14 Cv
  • Temperature, Minimum: 23°F (-5°C)
  • Temperature Maximum: 176°F (80°C)

OVERHEATING WARNING: The solenoid valve is not designed for continuous operation (not a 100% duty cycle). When energized, it will get hot. The coil can reach a maximum temperature of about 176°F (80°C), which complies with national standards. Prolonged energization for over 8 hours may cause the coil to burn.

WARNING: This product may expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

```
