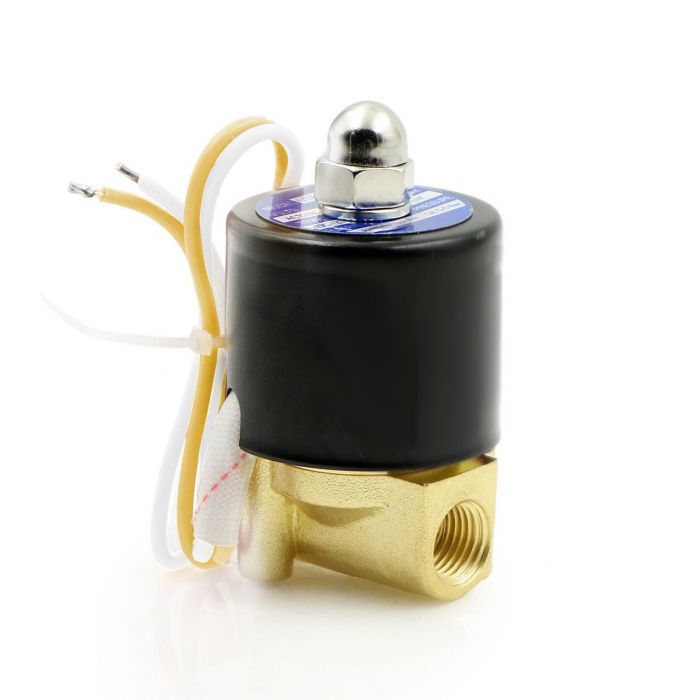

Electric Solenoid Valve- 1/4" 110V AC Brass Body Normally Closed, VITON SEAL
Normally closed (N/C) electric solenoid valve is made of durable brass, featuring two-way inlet and outlet ports with one-quarter inch (1/4") female threaded (NPT) connections, and Viton seals that are resistant to heat and oil. This valve is suitable for various applications such as hot or cold water, gas, air, low viscosity fluids (< 20 cst), oils, and hydrocarbons like gasoline, kerosene, or diesel fuel.
The solenoid valves come with an IP65 rating, making them able to withstand water spray. However, if installed permanently outdoors, it is advised to enclose them in a protective housing. Please note that they are not suitable for underwater use.
Customers select this versatile valve for tasks like do-it-yourself projects, moderate temperature applications, water exchange in aquariums, air horns, or draining moisture from air tanks.
Specifications
- Pipe Size: 1/4"
- Flow Aperture: 2.5 mm
- Body Material: Brass (Also available in Stainless Steel - Item # USS2-00066)
- Gasket / Diaphragm / Seal: VITON
- Operation Type: Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: AC 110V ± 10%
- Power rating: 16 VA
- Suitable Media: Air, water, oil, diesel fuel, kerosene, etc.
- Operational pressure range:
- Air/Water/Diesel fuel/Kerosene: 0-7 Bar (0 to 101 PSI)
- Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 0.23 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow value: 0.23 Cv
- Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
- Temperature Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
- WARNING: Not designed for continuous operation as it is not a 100% duty cycle.
- IMPORTANT NOTICE: The solenoid valve operates hot under normal conditions. The coil can reach a maximum temperature of about 176°F (80℃), complying fully with national standards. Continuous energizing for over 8 hours may cause the coil to burn.
- DISCLAIMER: This product may contain chemicals including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more details, visit www.P65Warnings.ca.gov.
