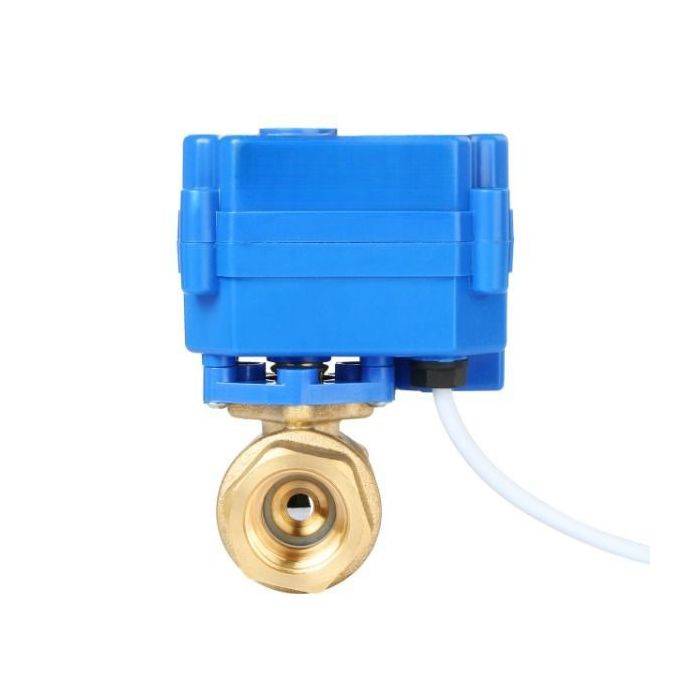

Brass Motorized Ball Valve - 1/2" with Full Port, 9-24 V AC/DC, 2 Wire Auto Return
Motorized ball valves are an essential component in various applications. This particular model operates with a speedy opening and closing mechanism of 3-5 seconds, consuming minimal energy to maintain its position. One notable distinction between motorized ball valves and many solenoid valves is that while solenoid valves typically stay energized continuously in a new position, motorized ball valves only consume energy during the transition from open to close, or vice versa.
The 2 wire auto return model is particularly suitable for scenarios where the valve needs to close in the event of a power outage. This valve can be powered to open and then remain connected, using minimal energy once fully opened. To close the valve, simply cut off power. Its operation is convenient with a straightforward on/off switch - when turned on, the valve stays open; and when turned off (or in case of power loss), it automatically closes.
Specifications
- Model: USS-MSV00010
- Valve Material: Brass
- Ball Seal: PTFE
- Operating Time: 3-5 Seconds
- Working Voltage: 9-24V AC/DC
- Max Power: 5 W
- Max Torque: 2 Nm
- Max Medium Pressure: 1.0 MPa
- Temperature Range for Flow Medium: 0°C to 90°C
- Ambient Temperature Range: -10°C to 40°C
- Enclosure Rating: IP65
- Life Expectancy: 80,000 to 100,000 Cycles
- Bore Type: Full
- Thread Type: NPT
- Wiring Type: 2 Wire Auto Return
