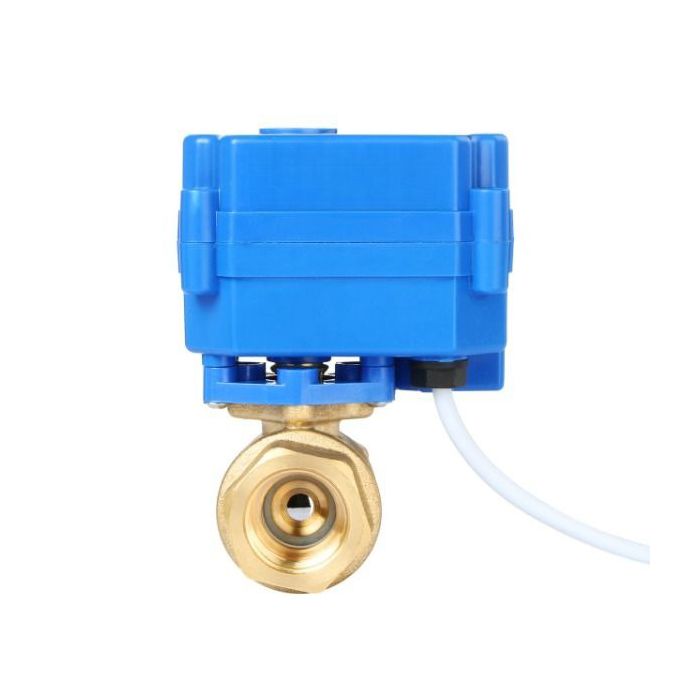

Motorized Brass Electrical Ball Valve - 1/2" with Full Port, 9-24 V AC/DC, 3 Wire Setup
Motorized ball valves play a crucial role in various applications. This particular model is designed to open and close within 3-5 seconds, maintaining its position without requiring any energy. This sets it apart from many solenoid valves, which typically remain energized constantly in a new position. Unlike solenoid valves, motorized ball valves consume energy only during the transition between open and close states. The 3-wire configuration of this model is ideal for scenarios that necessitate two-point control. Two wires can be connected directly to a toggle switch, while the third wire can be linked to a secondary control point, enabling operation with both manual and automated controls. Each unit includes detailed instructions and wiring diagrams for your convenience.
Specifications:
- Valve Material: Brass
- Ball Seal: PTFE
- Operating Time: 3-5 Seconds
- Working Voltage: 9-24V AC/DC
- Max Power: 2 W
- Max Torque: 2 N m
- Max Medium Pressure: 1.0 Mpa
- Temperature Range for Flow Medium: 0°C to 90°C
- Ambient Temperature Range: -10°C to 40°C
- Enclosure Rating: IP65
- Life Expectancy: 80,000 to 100,000 Cycles
- Bore Type: Full
- Thread Type: NPT
- Wiring Type: 3-Wire Setup
