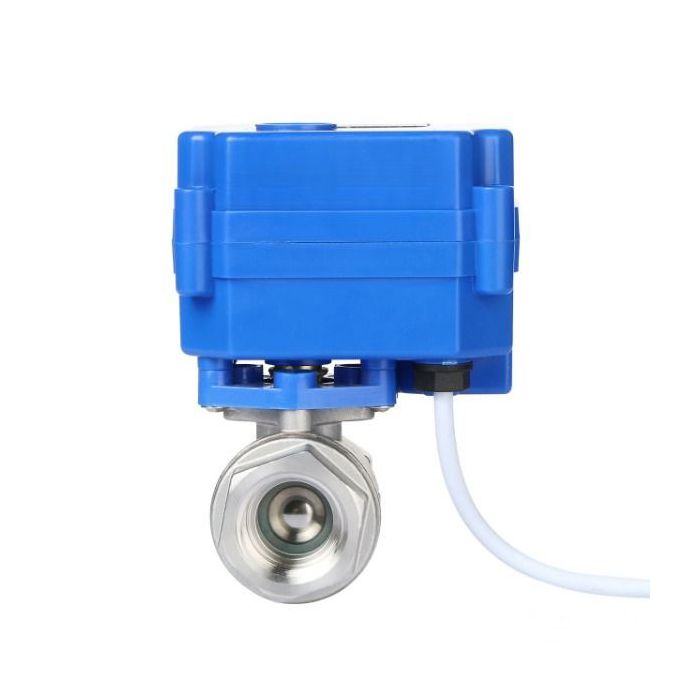

Motorized Ball Valve - 1/2" Stainless Steel Electrical Ball Valve with Full Port, 9-24 V AC/DC, 3 Wire Setup

$16.36
In stock
SKU
JFMSV00001

Motorized ball valves play a crucial role in various applications. This particular model is designed to open and close in just 3-5 seconds and holds its position without consuming any additional energy. Unlike many solenoid valves that are continuously energized when in a new position, motorized ball valves only use energy during the transition from open to close and vice versa.

The 3-wire model is ideal for situations requiring two-point control. Two of the wires can be connected to a toggle switch, while the third wire can be linked to a secondary point of control. This setup allows for manual operation with an open/close switch and enables automation with the second control point.

All models include detailed instructions and wiring diagrams to ensure easy installation and operation. The stainless steel ball valve is NSF certified, making it safe for use in drinking water pipelines.

Specifications:

  • Valve Material: SS304
  • Ball Seal: PTFE
  • Operating Time: 3-5 Seconds
  • Working Voltage: 9-24V AC/DC
  • Max Power: 2 W
  • Max Torque: 2 N m
  • Max Medium Pressure: 1.0 Mpa
  • Temperature Range for Flow Medium: 0°C to 90°C
  • Ambient Temperature Range: -10°C to 40°C
  • Enclosure Rating: IP65
  • Life Expectancy: 80,000 to 100,000 Cycles
  • Bore Type: Full
  • Thread Type: NPT
  • Wiring Type: 3 Wire Setup
