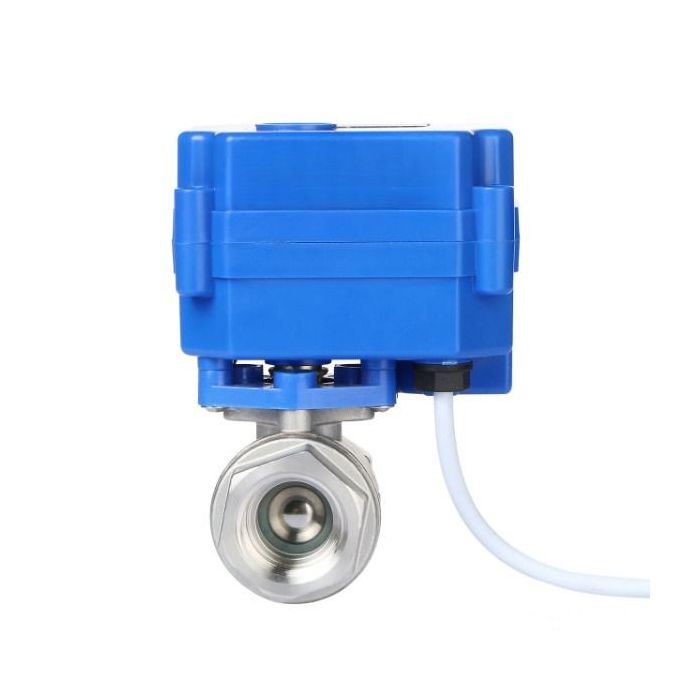

Motorized Ball Valve- 1/2" Stainless Steel Electrical Ball Valve with Full Port, 9-24 V AC/DC, 2 Wire Auto Return

$17.80
In stock
SKU
JFMSV00007

Motorized Ball Valves

Motorized ball valves are essential components in various applications. This specific model operates by opening and closing within 3-5 seconds, maintaining its position with minimal energy consumption. Unlike many solenoid valves that continuously require energy in a new position, motorized ball valves only use energy during the transition from open to close and vice versa.

The 2-wire auto-return model is ideal for scenarios where the valve must close during a power loss. By energizing the valve to open and keeping it connected, minimal energy is consumed once fully opened. Simply cut off the power supply to close the valve. This valve offers convenience with its operation using a straightforward on/off switch - it stays open when powered on and automatically closes when turned off or in case of power loss.

The stainless steel ball valve is NSF certified, allowing its installation in drinking water pipelines. Key specifications:

  • Valve Material: SS304
  • Ball Seal: PTFE
  • Operating Time: 3-5 Seconds
  • Working Voltage: 9-24V AC/DC
  • Max Power: 5 W
  • Max Torque: 2 N m
  • Max Medium Pressure: 1.0 Mpa
  • Temperature Range for Flow Medium: 0°C to 90°C
  • Ambient Temperature Range: -10°C to 40°C
  • Enclosure Rating: IP65
  • Life Expectancy: 80,000 to 100,000 Cycles
  • Bore Type: Full
  • Thread Type: NPT
  • Wiring Type: 2 Wire Auto Return
