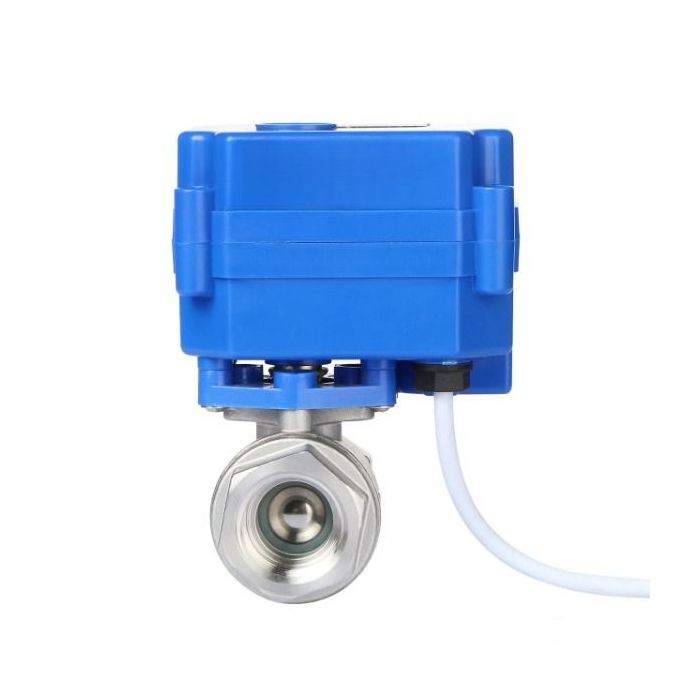

Motorized Ball Valve- 1/2" Stainless Steel Electrical Ball Valve with Full Port, 9-24 V DC, 2 Wire Reverse Polarity

$15.47
In stock
SKU
JFMSV00004

This motorized ball valve is an essential device for any tinkerer or DIY enthusiast. Motorized ball valves are highly energy-efficient and reliable. This particular model consumes no energy once fully opened or closed, allowing it to be used continuously without risking overheating. The 1/2 inch stainless steel valve can fully open or close in just 3-5 seconds. To switch between the two states, simply reverse the polarity, which can be done manually or by using a DPDT switch as indicated in the wiring diagram. Motorized ball valves have a wide range of applications, including home automation tasks. Additionally, this valve can be partially opened or closed using an Arduino or other control system. The stainless steel ball valve is NSF certified for installation in drinking water pipelines.

Specifications:

  • Valve Material: SS304
  • Ball Seal: PTFE
  • Operating Time: 3-5 Seconds
  • Working Voltage: 9-24V DC
  • Max Power: 2 W
  • Max Torque: 2 N m
  • Max Medium Pressure: 1.0 Mpa
  • Temperature Range for Flow Medium: 0°C to 90°C
  • Ambient Temperature Range: -10°C to 40°C
  • Enclosure Rating: IP65
  • Life Expectancy: 80,000 to 100,000 Cycles
  • Bore Type: Full
  • Thread Type: NPT
  • Wiring Type: 2 Wire Reverse Polarity
