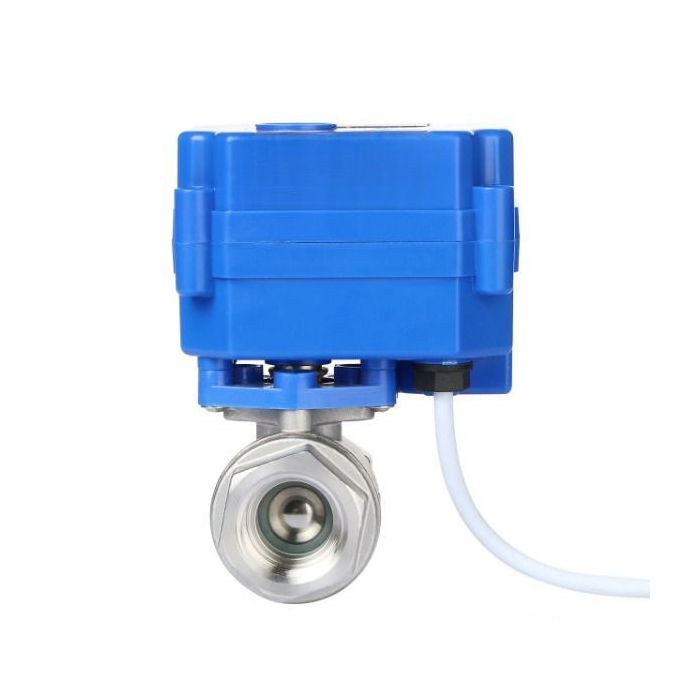

Motorized Ball Valve- 1/2" Stainless Steel Electrical Valve with Full Port, 9-24 V DC, 5 Wire Setup

$16.41
In stock
SKU
JFMSV00013

Motorized ball valves are an essential component for various applications. This particular model boasts an impressive opening and closing time of 6-8 seconds, requiring minimal energy to maintain its new position. This sets motorized ball valves apart from many solenoid valves, as most solenoid valves consume continuous energy when in a new position. The 5 wire model is particularly useful when it is necessary to display the valve's status. With user-friendly wiring diagrams and instructions, you can easily connect the valve to power and status indicator wires. The 5 wire model is well-suited for integration with home automation systems. Made of stainless steel, this ball valve is NSF certified, making it safe for use in drinking water pipelines.

  • Valve Material: SS304
  • Ball Seal: PTFE
  • Operating Time: 6-8 Seconds
  • Working Voltage: 9-24V DC
  • Max Power: 5 W
  • Max Torque: 6 N m
  • Max Medium Pressure: 1.0 Mpa
  • Temperature Range for Flow Medium: 0°C to 90°C
  • Ambient Temperature Range: -5°C to 40°C
  • Enclosure Rating: IP65
  • Life Expectancy: 80,000 to 100,000 Cycles
  • Bore Type: Full
  • Thread Type: NPT
  • Wiring Type: 5 Wire Setup
