Electric Solenoid Valve- 1" Brass Body Normally Closed, VITON SEAL

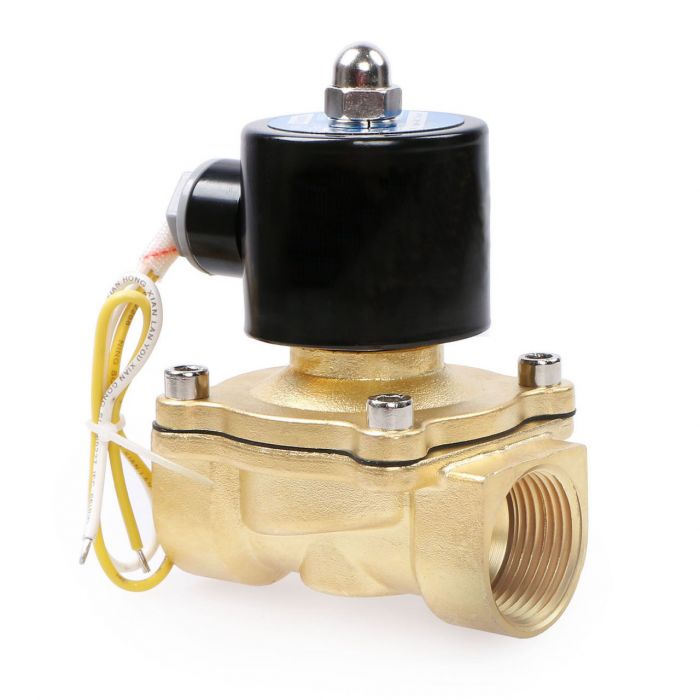

Electric Solenoid Valve with Brass Body
The electric solenoid valve features a high-quality brass body, with two-way inlet and outlet ports equipped with one-inch (1") female threaded (NPT) connections. It also comes with a heat and oil resistant Viton gasket, making it suitable for a variety of applications.
Designed for use with hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons such as gasoline, kerosene, or diesel fuel, this solenoid valve is a versatile solution for various projects and systems.
With an IP65 rating, the solenoid valve is capable of withstanding water spray, but it is recommended to enclose it in a protective housing if permanently installed outdoors. Please note that this valve is not suitable for underwater use.
Customers have chosen this general purpose valve for DIY projects, moderate temperature applications, harsh chemicals, flow control in irrigation and reverse osmosis systems, as well as regulating the flow of propane gas.
Specifications:
- Pipe Size: 1"
- Flow Aperture: 25 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal Material: Viton
- Operation Type: Semi-Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: AC 110V ± 10%
- Power Rating: 22 VA
- Suitable Media: Air, water, oil, diesel fuel, kerosene, etc.
- Operational Pressure Range:
- Air/Water/Diesel fuel/Kerosene: 0-7 Bar (0 to 101 PSI)
- Oil: 0-5 Bar (0 to 72 PSI)
- Flow Capacity: 12 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow Value: 12 Cv
- Temperature, Minimum: 14°F (-10°C)
- Temperature, Maximum: 248°F (120°C)
Also available with a Stainless Steel body.
OVERHEATING WARNING: This solenoid valve is not suitable for continuous operation (not a 100% duty cycle). While energized, the coil will heat up, reaching a maximum temperature of about 176°F (80℃). If energized continuously for more than 8 hours, the coil may burn.
