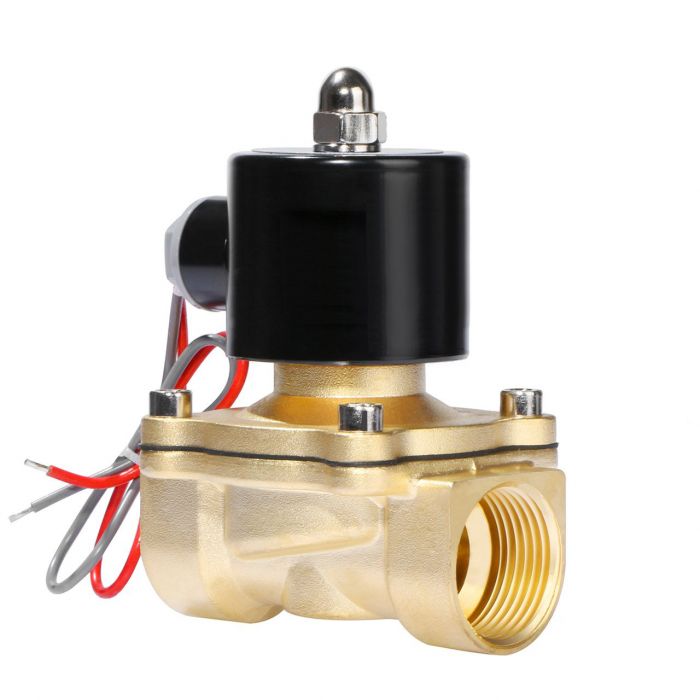

Electric Solenoid Valve- 1" 24V AC Brass Body Normally Closed, VITON SEAL
These electric solenoid valves feature a durable brass body, two-way inlet and outlet ports with 1" female threaded connections, and a heat and oil resistant Viton gasket. They are suitable for a wide range of applications including hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons like gasoline, kerosene, or diesel fuel.
The valves are rated IP65, meaning they can withstand water spray. For outdoor installations, it is recommended to enclose them in protective housing, as they are not suitable for underwater use. Customers have chosen these versatile valves for various purposes such as DIY projects, moderate temperature applications, handling harsh chemicals, flow control in irrigation systems, reverse osmosis systems, or regulating propane gas flow.
Specifications
- Pipe Size: 1"
- Flow Aperture: 25 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: VITON
- Operation Type: Semi-direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: AC 24V ± 10%
- Power rating: 21 VA
- Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
- Operational pressure range: Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar(0 to 72 PSI)
- Flow capacity: 12 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow value: 12 Cv
- Temperature, Minimum: 14°F (-10°C)
- Temperature Maximum: 248°F (120°C)
OVERHEATING WARNING: These valves are not designed for continuous operation (not a 100% duty cycle). While energized, under normal conditions, they will get hot. The coil can reach a maximum temperature of about 176°F (80°C), which complies with national standards. If energized continuously for more than 8 hours, the coil may burn.
