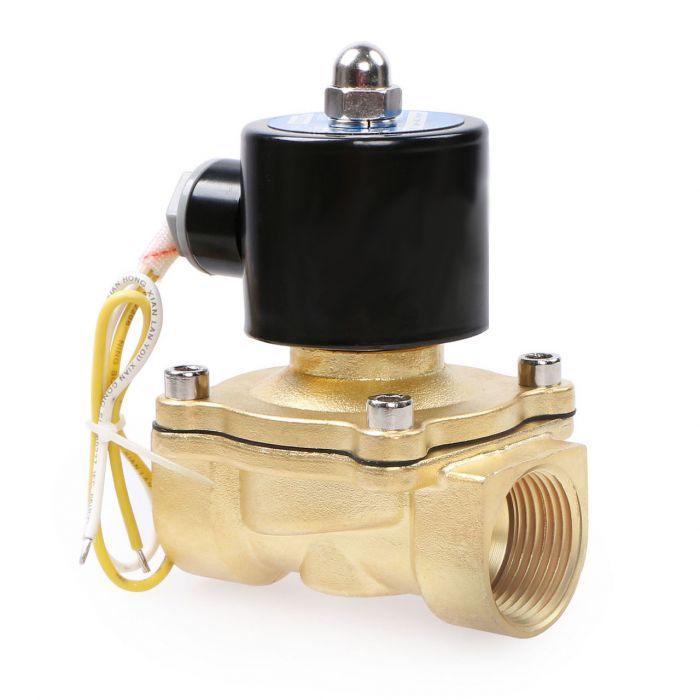

Electric Solenoid Valve- 1" 110V AC Solenoid Valve with Brass Body, Normally Closed and NBR Seal
Electric solenoid valves are essential components for controlling the flow of various fluids. This particular solenoid valve features a durable brass body with 1" female threaded connections. The heat and oil resistant NBR seals ensure reliable performance with hot or cold water, natural gas, air, low viscosity fluids, and oils. With an IP65 rating, the solenoid valve can withstand water spray, making it suitable for a range of applications.
This general purpose valve is popular among customers for do-it-yourself projects, moderate temperature applications, water exchange in aquariums, air horn systems, and removing moisture from air tanks.
Specifications:
- Pipe Size: 1"
- Flow Aperture: 25 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: NBR
- Operation Type: Semi-direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: AC 110V ± 10%
- Power rating: 22 VA
- Suitable Media: Air, water, diesel oil, kerosene, etc.
- Operational pressure range:
- Air/Water: 0-7 Bar (0 to 101 PSI)
- Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 12 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow value: 12 Cv
- Temperature, Minimum: 23°F (-5°C)
- Temperature Maximum: 176°F (80°C)
Important Notes:
This solenoid valve is not designed for continuous operation and should not be used in underwater applications. During typical operation, the coil may reach a maximum temperature of about 176°F (80°C). Continuous energization for more than 8 hours can lead to coil overheating.
