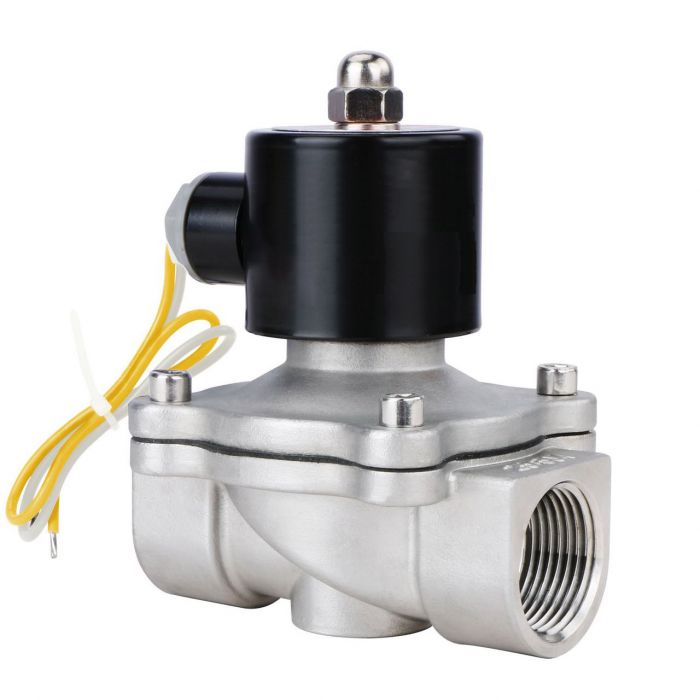

1" Electric Solenoid Valve - Stainless Steel Body, 110V AC, Normally Closed with VITON SEAL
Normally closed (N/C) electric solenoid valve with a high-quality stainless steel body, two-way inlet and outlet ports featuring one inch (1") female threaded (NPT) connections. Includes a heat and oil resistant Viton gasket, suitable for a variety of applications such as hot or cold water, gas, air, low viscosity fluids (< 20 cst), oils, and hydrocarbons like gasoline, kerosene, or diesel fuel.
The solenoid valves are IP65 rated, ensuring resistance to water spray. It is advisable to enclose the valves in protective housing if permanently installed outdoors. Please note, this valve is not suitable for underwater use.
Customers opt for this versatile valve for DIY projects, moderate temperature applications, handling harsh chemicals, flow control in irrigation systems, reverse osmosis systems, or managing propane gas flow.
Specifications
- Pipe Size: 1"
- Flow Aperture: 25 mm
- Body Material: Stainless Steel
- Gasket / Diaphragm / Seal: Viton
- Operation Type: Semi-Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: AC 110V ± 10%
- Power rating: 22 VA
- Suitable Media: Air, water, oil, diesel fuel, kerosene, etc.
- Operational pressure range: Air/Water/Diesel fuel/Kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 12 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow value: 12 Cv
- Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
- Temperature Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
This valve is also available with a brass body (Item # USS2-00002).
OVERHEATING WARNING: This valve is not designed for continuous operation (not a 100% duty cycle). During normal operation, the solenoid valve will generate heat. The coil temperature will reach a maximum of about 176°F (80℃), compliant with the national standard: JB/T7352-2010. Continuous energization for over 8 hours may cause the coil to burn.
