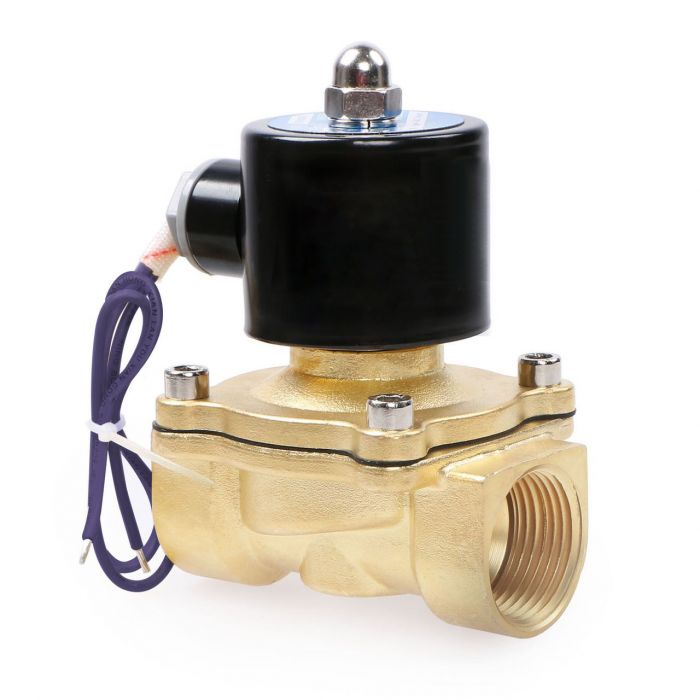

1" 12V DC Brass Electric Solenoid Valve with VITON SEAL, Normally Closed
A normally closed (N/C) electric solenoid valve featuring a high-quality brass body, two-way inlet and outlet ports with one inch female threaded (NPT) connections, and a heat and oil resistant Viton gasket. Suitable for a variety of applications such as hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons like gasoline, kerosene, or diesel fuel.
These solenoid valves are rated IP65, making them able to withstand water spray. For outdoor use, it is recommended to enclose them in protective housing and avoid submersion. Customers commonly select this valve for DIY projects, moderate temperature environments, handling harsh chemicals, irrigation and reverse osmosis systems, and controlling propane gas flow.
- Pipe Size: 1"
- Flow Aperture: 25 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: Viton
- Operation Type: Semi-Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: DC 12V ± 10%
- Power rating: 20W
- Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
- Operational pressure range:
- Air/Water/Diesel fuel/Kerosene: 0-7 Bar (0 to 101 PSI)
- Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 12 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow value: 12 Cv
- Temperature, Minimum: 14°F (-10°C)
- Temperature Maximum: 248°F (120°C)
- Also available with Stainless Steel body: Item # USS2-00076
OVERHEATING WARNING: Not designed for continuous operation (not a 100% duty cycle). The coil may reach a maximum temperature of 176°F under normal conditions. Continuous energization for over 8 hours can lead to coil burnout.
WARNING: This product may expose you to chemicals including lead, known to the State of California to cause cancer and birth defects. For more information, visit www.P65Warnings.ca.gov.
Refer to the instruction manual for detailed guidelines.
