Electric Solenoid Valve - 1" 24V DC Brass Body Normally Closed, VITON SEAL

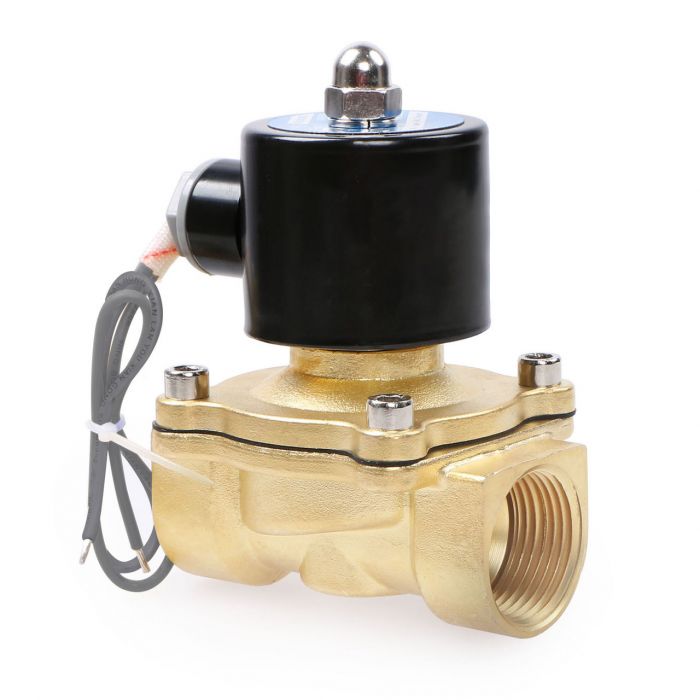

Electric solenoid valves are essential components for controlling the flow of various fluids in a variety of applications. This normally closed (N/C) solenoid valve features a durable brass body and two-way inlet and outlet ports with one inch (1") female threaded (NPT) connections. The Viton gasket of the valve is heat and oil resistant, making it suitable for use with hot or cold water, gas, air, low viscosity fluids (< 20 cst), oils, and hydrocarbons such as gasoline, kerosene, or diesel fuel.
With an IP65 rating, these solenoid valves can withstand water spray, but it is recommended to enclose them in protective housing if permanently installed outdoors. Please note that these valves are not suitable for use underwater.
Customers have chosen this general purpose valve for a wide range of applications including do-it-yourself projects, moderate temperature environments, handling harsh chemicals, flow control in irrigation systems, reverse osmosis systems, or regulating the flow of propane gas.
Specifications:
- Pipe Size: 1"
- Flow Aperture: 25 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: VITON
- Operation Type: Semi-direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: DC 24V ± 10%
- Power rating: 20 W
- Suitable Media: Air, water, oil, Diesel fuel, kerosene etc.
- Operational pressure range:
- Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI)
- Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 12 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow value: 12 Cv
- Temperature, Minimum: 14°F (-10°C)
- Temperature Maximum: 248°F (120°C)
WARNING: This solenoid valve is not designed for continuous operation and does not have a 100% duty cycle. When energized under normal conditions, the valve may get hot, with the coil reaching a maximum temperature of about 176°F (80℃). Continuous energizing for more than 8 hours can cause the coil to burn.
CAUTION: This product may expose you to chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For further information, visit www.P65Warnings.ca.gov.
``
