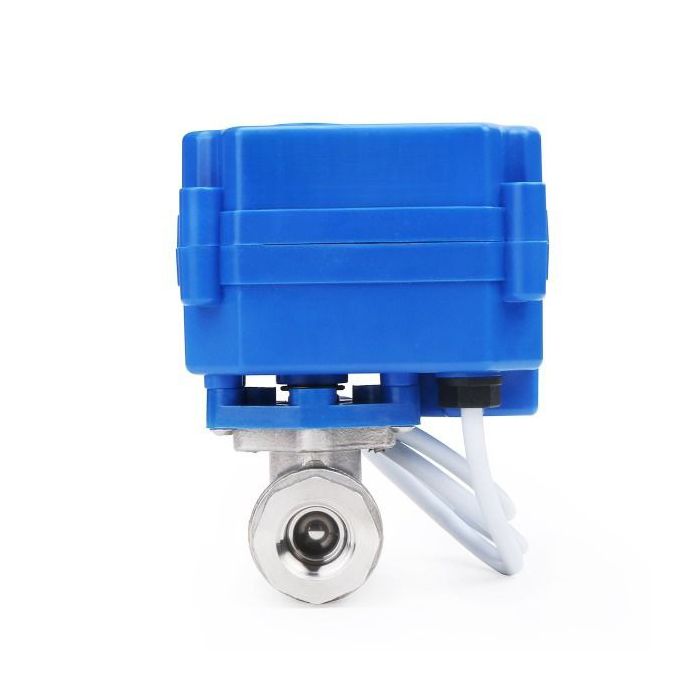

Motorized Ball Valve - 1/4" Stainless Steel Electrical Ball Valve with Full Port, 9-24 V AC/DC, 3 Wire Setup

$16.25
In stock
SKU
JFMSV00025

Motorized ball valves play a crucial role in various applications. This ¼” stainless steel model is designed to open and close in 3-5 seconds, staying in its new position without using any energy. Unlike many solenoid valves that remain energized continuously in a new position, motorized ball valves only consume energy when transitioning from open to close or vice versa. The 3-wire model is ideal for scenarios requiring two-point control. Two of the wires can be connected to a toggle switch, while the third wire can be linked to a second control point for automation. Each model includes instructions and wiring diagrams for a hassle-free setup. The stainless steel ball valve is NSF certified, indicating its suitability for installation in drinking water pipelines.

Specifications:

  • Valve Material: SS304
  • Ball Seal: PTFE
  • Operating Time: 3-5 Seconds
  • Working Voltage: 9-24V AC/DC
  • Max Power: 2 W
  • Max Torque: 2 N m
  • Max Medium Pressure: 1.0 Mpa
  • Temperature Range for Flow Medium: 0°C to 90°C
  • Ambient Temperature Range: -10°C to 40°C
  • Enclosure Rating: IP65
  • Life Expectancy: 80,000 to 100,000 Cycles
  • Bore Type: Full
  • Thread Type: NPT
  • Wiring Type: 3 Wire Setup
