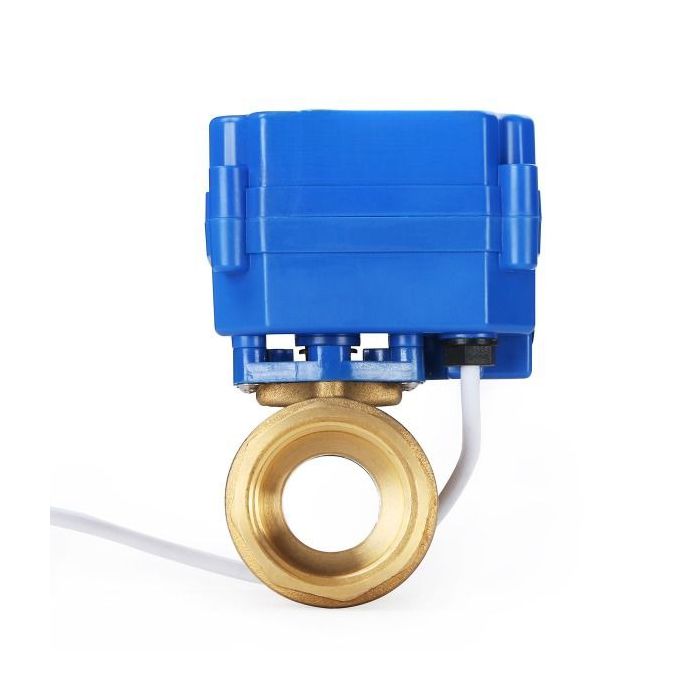

Motorized Ball Valve- 1" Brass Electrical Ball Valve with Standard Port, 9-24 V AC/DC, 3 Wire Setup

$21.24
In stock
SKU
JFMSV00020

Motorized ball valves are an essential component in numerous applications. This particular model swiftly opens and closes within 3-5 seconds, maintaining its new position without consuming any energy. This sets motorized ball valves apart from many solenoid valves, as most solenoid valves remain energized continuously in a new position, whereas motorized ball valves only use energy when transitioning from open to close or vice versa.

The 3-wire configuration of this model is ideal for scenarios requiring two-point control. With two wires capable of direct connection to a toggle switch and the third wire to a second control point, you can operate the valve with an open/close switch, while the second control point allows for automation. Each model includes detailed instructions and wiring diagrams for your convenience.

Specifications:

  • Valve Material: Brass
  • Ball Seal: PTFE
  • Operating Time: 3-5 Seconds
  • Working Voltage: 9-24V AC/DC
  • Max Power: 2 W
  • Max Torque: 2 N m
  • Max Medium Pressure: 1.0 Mpa
  • Temperature Range for Flow Medium: 0°C to 90°C
  • Ambient Temperature Range: -10°C to 40°C
  • Enclosure Rating: IP65
  • Life Expectancy: 80,000 to 100,000 Cycles
  • Bore Type: Standard
  • Thread Type: NPT
  • Wiring Type: 3 Wire Setup
