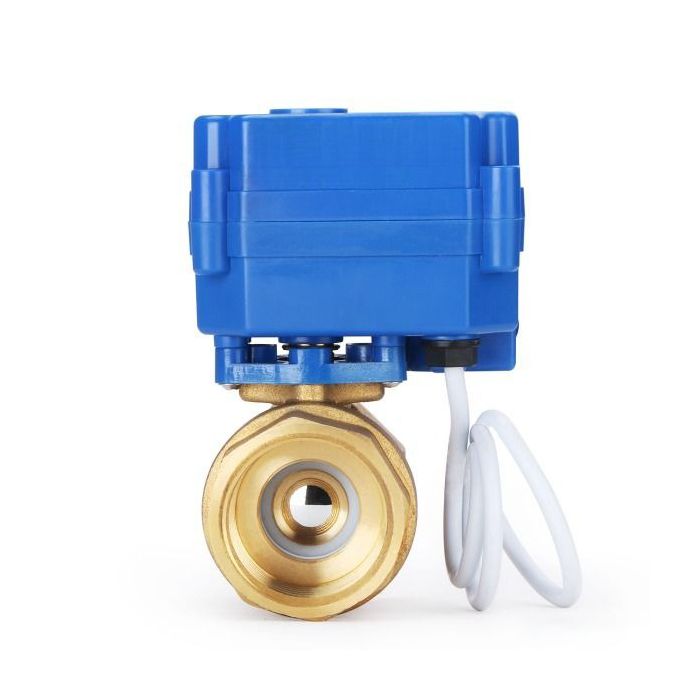

Motorized Ball Valve- 1" Brass Electrical Ball Valve with Standard Port, 9-24 V DC, 2 Wire Reverse Polarity

$40.99
In stock
SKU
JFMSV00022
Motorized Ball Valve

Motorized Ball Valve

This motorized ball valve is an essential device for any tinkerer or DIY enthusiast. Motorized ball valves are highly energy efficient and reliable. This model consumes no energy once fully opened or closed, making it safe to use continuously without the risk of overheating. Ideal for projects with low pressure, these valves can even operate with gravity-fed arrangements. The 1-inch brass model opens or closes fully in just 3-5 seconds, and switching between opening and closing is as easy as reversing the polarity, either manually or by using a DPDT switch.

Motorized ball valves have a wide range of applications and can be used in various home automation tasks. This brass model is particularly suitable for irrigation or hydroponic systems. Additionally, it offers the flexibility to partially open or close using an Arduino or other control system, providing a great solution when flow needs to be restricted but not completely shut off.

Specifications

  • Valve Material: Brass
  • Ball Seal: PTFE
  • Operating Time: 3-5 Seconds
  • Working Voltage: 9-24V DC
  • Max Power: 2 W
  • Max Torque: 2 N m
  • Max Medium Pressure: 1.0 Mpa
  • Temperature Range for Flow Medium: 0°C to 90°C
  • Ambient Temperature Range: -10°C to 40°C
  • Enclosure Rating: IP65
  • Life Expectancy: 80,000 to 100,000 Cycles
  • Bore Type: Standard
  • Thread Type: NPT
  • Wiring Type: 2 Wire Reverse Polarity
