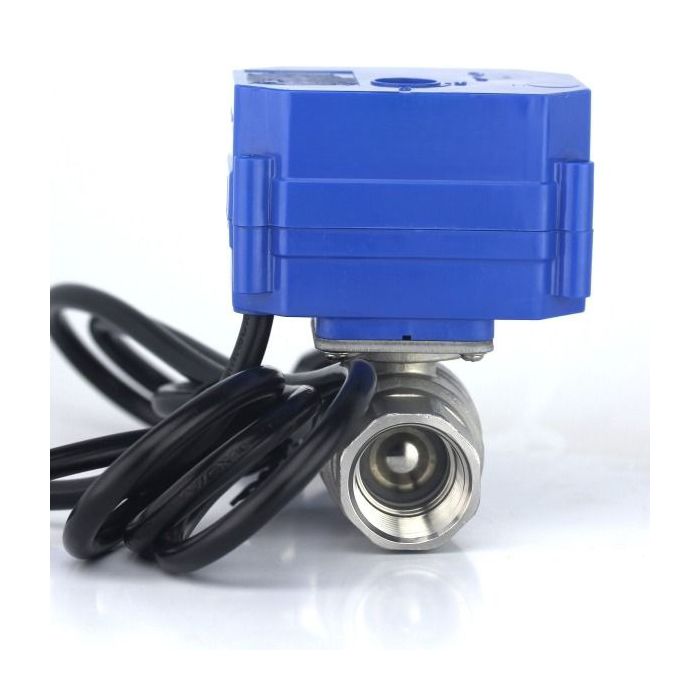

Stainless Steel Motorized Ball Valve - 1" Electric Ball Valve with Full Port, 110 V AC, 2 Wire Auto Return
Motorized ball valves are essential equipment in various applications. This 1” stainless steel model can open and close within 6-8 seconds, and it will stay in its new position without consuming any energy. This sets motorized ball valves apart from many solenoid valves, which typically remain energized constantly in a new position. Unlike solenoid valves, motorized ball valves only use energy when transitioning between open and closed states.
These valves are commonly integrated into home automation systems and can serve as emergency backups for water systems. Home brewers particularly favor motorized ball valves for their applications. The high-quality construction and affordability of these valves make them a top choice for individual purchasers.
Specifications:
- Valve Material: Stainless Steel 304
- Ball Seal: PTFE
- Operating Time: 6-8 Seconds
- Working Voltage: 110 V AC
- Max Power: 5 W
- Max Torque: 6 N m
- Max Medium Pressure: 1.0 MPa
- Temperature Range for Flow Medium: 0°C to 90°C
- Ambient Temperature Range: -5°C to 40°C
- Enclosure Rating: IP65
- Life Expectancy: 80,000 to 100,000 Cycles
- Bore Type: Full
- Thread Type: NPT
- Wiring Type: 2 Wire Auto Return
