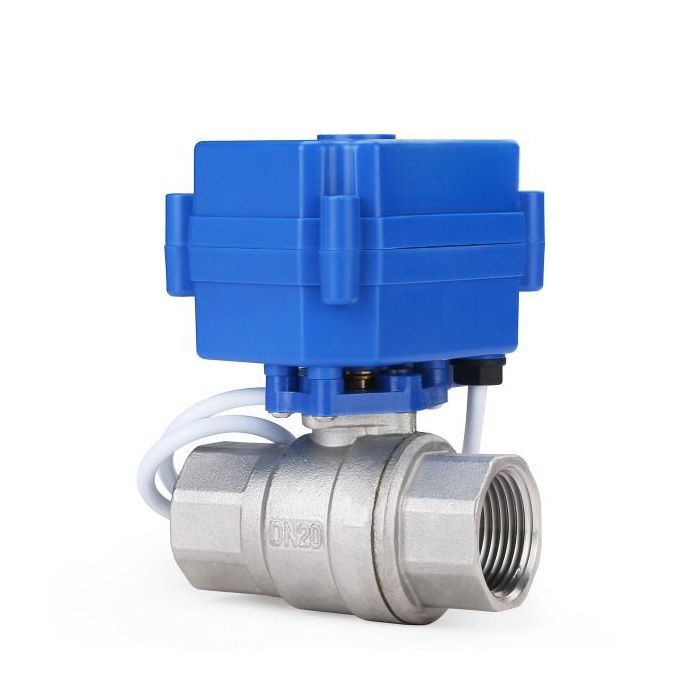

Stainless Steel Motorized Ball Valve - 1" Electrical Ball Valve with Full Port, 9-24 V DC, 2 Wire Reverse Polarity
Motorized ball valves are essential for a wide range of applications. This specific model operates by opening and closing within 6-8 seconds, staying securely in position without consuming any additional energy. One notable advantage of motorized ball valves over solenoid valves is the conscious use of energy - most solenoid valves continuously draw power when in a fixed position, whereas motorized ball valves only expend energy during the transition between open and closed states. The 2 wire reverse polarity design exemplifies this efficiency. By energizing the valve to open and leaving it connected, no energy is consumed once fully open. To close it, simply reverse the wiring polarity. This can be achieved manually or by using a DPDT switch, as illustrated in the wiring diagram. The stainless steel ball valve is NSF certified, making it suitable for installation in drinking water pipelines.
Specifications:
- Valve Material: SS304
- Ball Seal: PTFE
- Operating Time: 6-8 Seconds
- Working Voltage: 9-24V DC
- Max Power: 5 W
- Max Torque: 6 N m
- Max Medium Pressure: 1.0 Mpa
- Temperature Range for Flow Medium: 0°C to 90°C
- Ambient Temperature Range: -20°C to 45°C
- Enclosure Rating: IP65
- Life Expectancy: 80,000 to 100,000 Cycles
- Bore Type: Full
- Thread Type: NPT
- Wiring Type: 2 Wire Reverse Polarity
