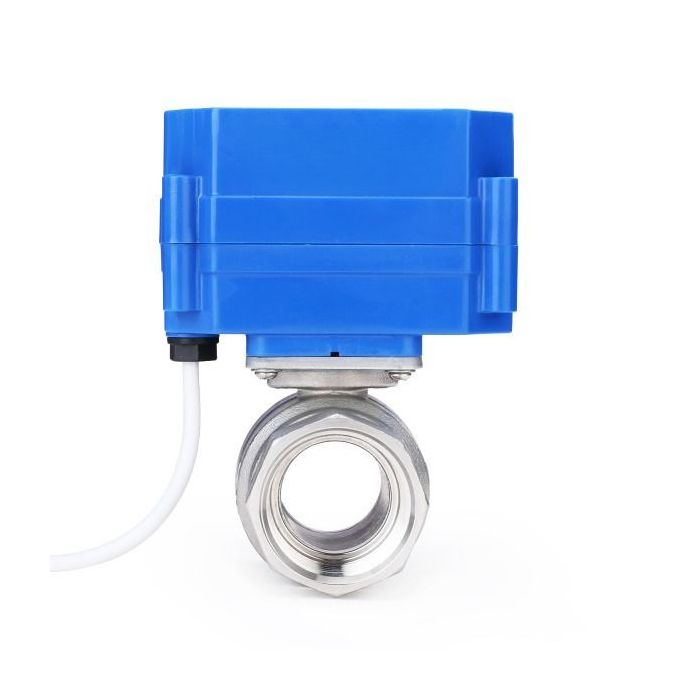

Stainless Steel Motorized Ball Valve - 1" Electrical Ball Valve with Full Port, 9-24 V DC, 5 Wire Setup

$26.09
In stock
SKU
JFMSV00015

Motorized ball valves play a crucial role in various applications. This model boasts a quick opening and closing time of 6-8 seconds, requiring minimal energy to maintain its new position. Unlike many solenoid valves that remain continuously energized in a new position, motorized ball valves only consume energy during the transition from open to close, or vice versa. The 5-wire model is designed for situations where valve status display is essential. Clear wiring diagrams and instructions simplify the process of connecting the valve to power and the status indicator wires. Ideal for home automation systems, this stainless steel ball valve is NSF certified for installation in drinking water pipelines.

Specifications:

  • Valve Material: SS304
  • Ball Seal: PTFE
  • Operating Time: 6-8 Seconds
  • Working Voltage: 9-24V DC
  • Max Power: 5 W
  • Max Torque: 6 N m
  • Max Medium Pressure: 1.0 Mpa
  • Temperature Range for Flow Medium: 0°C to 90°C
  • Ambient Temperature Range: -5°C to 40°C
  • Enclosure Rating: IP65
  • Life Expectancy: 80,000 to 100,000 Cycles
  • Bore Type: Full
  • Thread Type: NPT
  • Wiring Type: 5 Wire Setup
