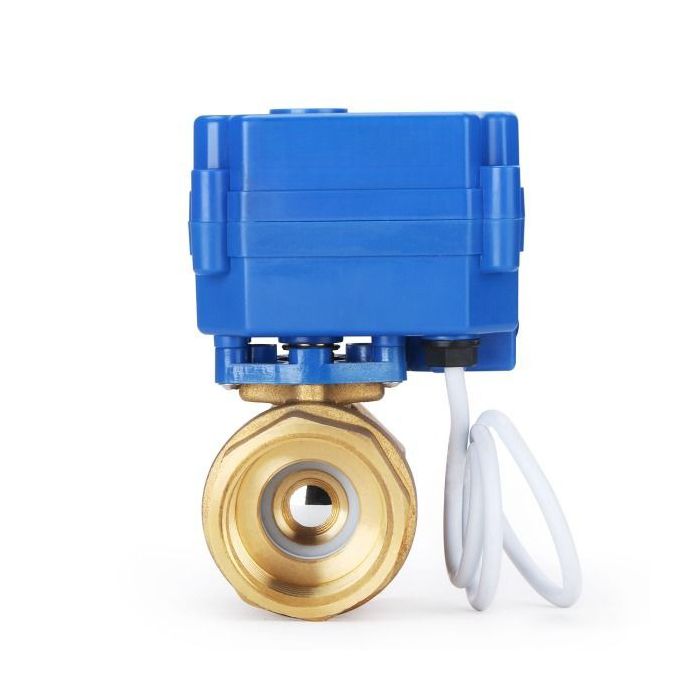

Motorized Ball Valve - 1" Brass Electrical Ball Valve with Standard Port, 9-24 V DC, 5 Wire Setup
Motorized ball valves play a crucial role in a variety of applications. This particular model operates with an opening and closing speed of 6-8 seconds, and stays securely in its new position with minimal energy consumption. This sets motorized ball valves apart from many solenoid valves, as most solenoid valves require continuous energy supply when in a new position, unlike motorized ball valves that only consume energy during the transition phase. The 5-wire configuration of this model is especially useful when it is essential to have a visible status of the valve. Easy-to-follow wiring diagrams and instructions are provided to assist you in connecting the valve to power sources and status indicator wires. The 5-wire model is well-suited for integration into home automation systems.
Specifications:
- Valve Material: Brass
- Ball Seal: PTFE
- Operating Time: 6-8 Seconds
- Working Voltage: 9-24V DC
- Max Power: 5 W
- Max Torque: 6 N m
- Max Medium Pressure: 1.0 Mpa
- Temperature Range for Flow Medium: 0°C to 90°C
- Ambient Temperature Range: -5°C to 40°C
- Enclosure Rating: IP65
- Life Expectancy: 80,000 to 100,000 Cycles
- Bore Type: Standard
- Thread Type: NPT
- Wiring Type: 5 Wire Setup
