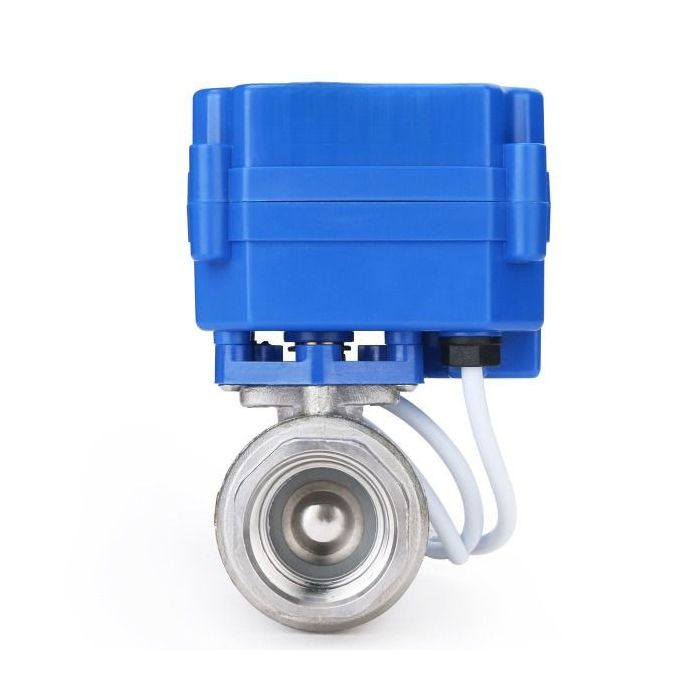

Motorized Stainless Steel Ball Valve - 3/4" Electrical Valve with Full Port, 9-24 V AC/DC, 3 Wire Setup

$19.15
In stock
SKU
JFMSV00002

Motorized ball valves play a crucial role in various applications. This ¾" stainless steel valve can open and close in 3-5 seconds, holding its position without using any energy. This sets motorized ball valves apart from many solenoid valves, which typically remain energized continuously when in a new position. Unlike solenoid valves, motorized ball valves only consume energy when transitioning between open and close states. The 3-wire model is ideal for scenarios requiring two-point control. Two wires can be linked to a toggle switch, while the third wire can connect to a second control point, enabling both manual and automated operation. Each model includes comprehensive instructions and wiring diagrams for your convenience. The stainless steel ball valve is NSF certified, making it safe to install in drinking water pipelines.

Specifications:

  • Valve Material: SS304
  • Ball Seal: PTFE
  • Operating Time: 3-5 Seconds
  • Working Voltage: 9-24V AC/DC
  • Max Power: 2 W
  • Max Torque: 2 N m
  • Max Medium Pressure: 1.0 Mpa
  • Temperature Range for Flow Medium: 0°C to 90°C
  • Ambient Temperature Range: -10°C to 40°C
  • Enclosure Rating: IP65
  • Life Expectancy: 80,000 to 100,000 Cycles
  • Bore Type: Full
  • Thread Type: NPT
  • Wiring Type: 3 Wire Setup
