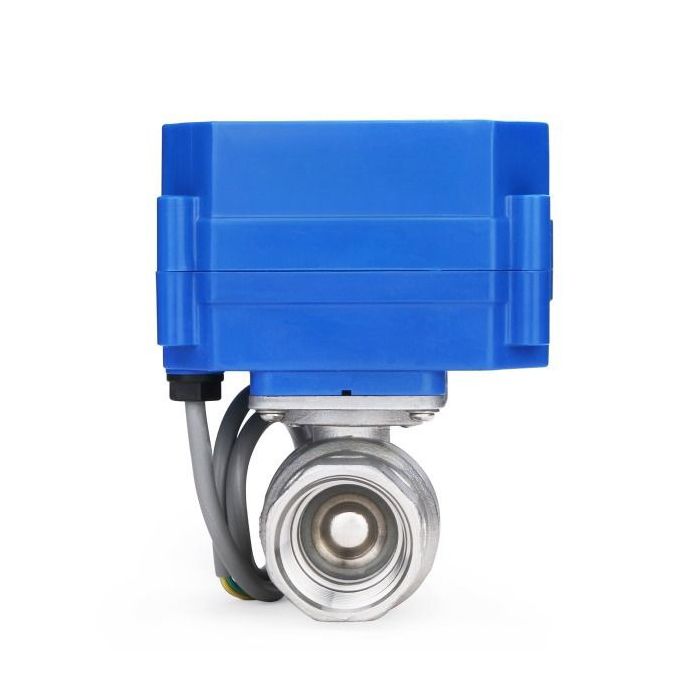

Motorized Ball Valve - 3/4" Stainless Steel Electrical Ball Valve with Full Port, 9-24 V DC, 5 Wire Setup
Motorized ball valves are an essential component in a wide range of applications. This particular model features an opening and closing time of 6-8 seconds, and it requires minimal energy to maintain its position. This sets it apart from many solenoid valves, which typically stay energized constantly in a new position. Motorized ball valves only consume energy when transitioning from open to close, or vice versa.
The 5-wire model is particularly useful in situations where it's important to have a visual indication of the valve's status. Clear wiring diagrams and detailed instructions are provided to guide you through the process of connecting the valve to power, as well as linking the status indicator wires. This 5-wire model is a fantastic choice for integration into home automation systems.
The stainless steel ball valve included in this set is NSF certified, making it safe for installation in drinking water pipelines.
Specifications
- Valve Material: SS304
- Ball Seal: PTFE
- Operating Time: 6-8 Seconds
- Working Voltage: 9-24V DC
- Max Power: 5W
- Max Torque: 6 Nm
- Max Medium Pressure: 1.0 Mpa
- Temperature Range for Flow Medium: 0°C to 90°C
- Ambient Temperature Range: -5°C to 40°C
- Enclosure Rating: IP65
- Life Expectancy: 80,000 to 100,000 Cycles
- Bore Type: Full
- Thread Type: NPT
- Wiring Type: 5 Wire Setup
