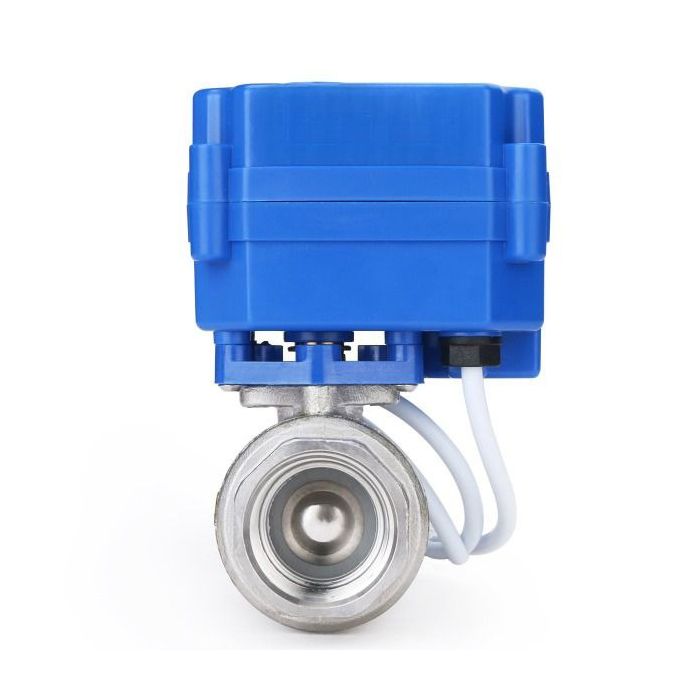

Stainless Steel Motorized Ball Valve - 3/4" Electrical Valve with Full Port, 9-24 V DC, 2 Wire Reverse Polarity

$18.27
In stock
SKU
JFMSV00005

This motorized ball valve is a quintessential device for any tinkerer or DIY enthusiast. Motorized ball valves are very energy efficient and reliable. This model expends NO energy once fully opened or fully closed. This means it can be hooked up ad nauseum with no risk of overheating. This ¾ in stainless steel model opens or closes fully in just 3-5 seconds. To switch between opening and closing, simply reverse the polarity. This can be achieved manually, or by using a DPDT switch as shown in the wiring diagram.

There are a wide variety of possible applications for motorized ball valves. They can be used in different home automation tasks. As a bonus, this valve can be opened or closed only partially, using an Arduino or other control system. The stainless steel ball valve is NSF certified, which means you can install it in the drinking water pipeline.

Specifications:

  • Valve Material: SS304
  • Ball Seal: PTFE
  • Operating Time: 3-5 Seconds
  • Working Voltage: 9-24V DC
  • Max Power: 2 W
  • Max Torque: 2 N m
  • Max Medium Pressure: 1.0 MPa
  • Temperature Range for Flow Medium: 0°C to 90°C
  • Ambient Temperature Range: -10°C to 40°C
  • Enclosure Rating: IP65
  • Life Expectancy: 80,000 to 100,000 Cycles
  • Bore Type: Full
  • Thread Type: NPT
  • Wiring Type: 2 Wire Reverse Polarity
