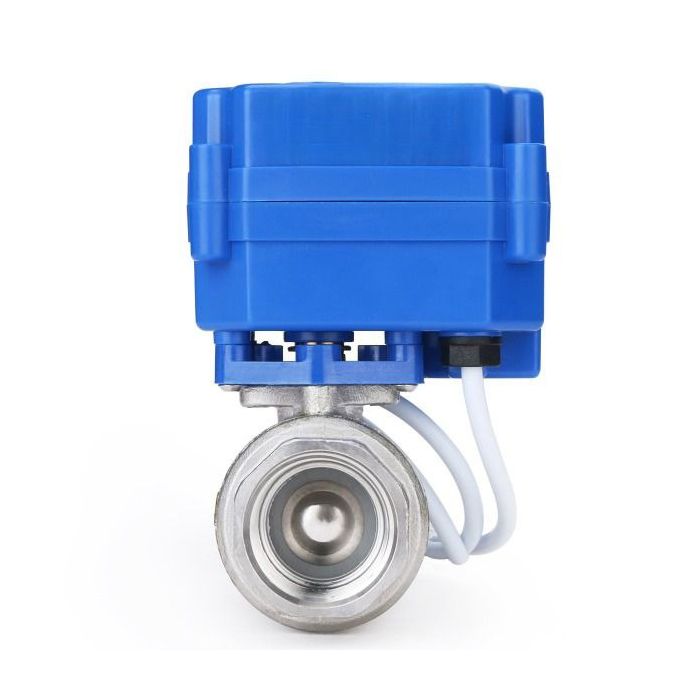

Motorized Ball Valve- 3/4" Stainless Steel Electrical Ball Valve with Full Port, 9-24 V AC/DC, 2 Wire Auto Return
Motorized ball valves are an essential component in various applications. This particular model is designed to open and close within 3-5 seconds, maintaining its position with minimal energy consumption. This sets motorized ball valves apart from many solenoid valves, as most solenoid valves require continuous energy while in a new position. In contrast, motorized ball valves only consume energy during the transition from open to close or vice versa.
The 2-wire auto return version is ideal for scenarios where the valve needs to close automatically in the event of a power outage. By energizing the valve to open and leaving it connected, minimal energy is used once fully opened. To close the valve, simply cut off power. This valve offers convenience with its simple on/off switch operation: when on, it stays open, and when off (or in case of power loss), it automatically closes. Additionally, the stainless steel ball valve is NSF certified, making it suitable for installation in drinking water pipelines.
Specifications
U.S. Solid Model: USS-MSV00008 (Normally-Open Version: JFMSV00072), (25-Pack Version:JFMSV00102), (New Type with Indicator: JFMBV00009)
Valve Material : SS304
Ball Seal: PTFE
Operating Time : 3-5 Seconds
Working Voltage : 9-24V AC/DC
Max Power : 5 W
Max Torque : 2 N m
Max Medium Pressure : 1.0 Mpa
Temperature Range for Flow Medium : 0°C to 90°C
Ambient Temperature Range : -10°C to 40°C
Enclosure Rating : IP65
Life Expectancy : 80,000 to 100,000 Cycles
Bore Type : Full
Thread Type : NPT
Wiring Type : 2 Wire Auto Return
