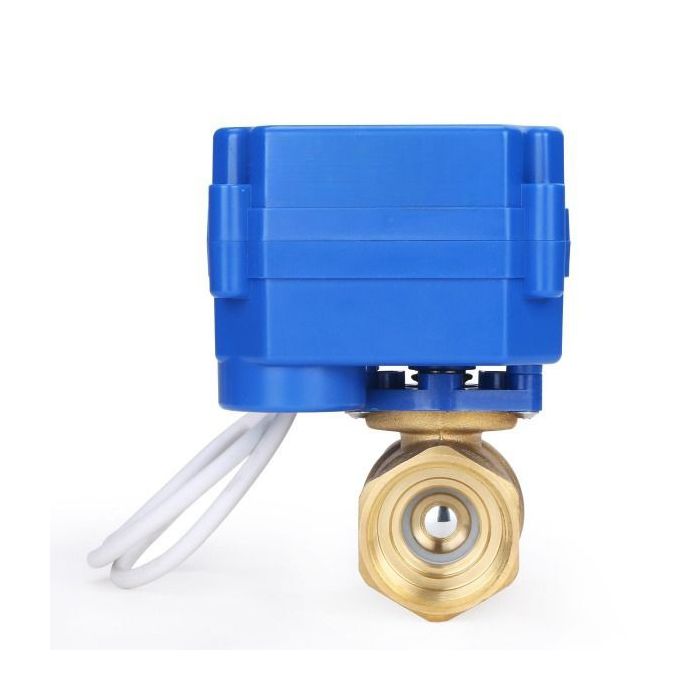

Motorized Ball Valve - 3/4" Brass Electrical Ball Valve with Standard Port, 9-24 V AC/DC, 3 Wire Setup

$15.12
In stock
SKU
JFMSV00019

Motorized ball valves are essential equipment for various applications. This specific model operates with a quick opening and closing time of 3-5 seconds, requiring no energy to maintain its position, distinguishing it from many solenoid valves. Unlike solenoid valves that are continually energized in a specific position, motorized ball valves only consume energy during transitions between open and close states.

The 3-wire model is particularly suitable for scenarios requiring two-point control. By connecting two wires directly to a toggle switch and the third wire to an additional control point, users can achieve operation through a manual open/close switch while enabling automation through the second control point. Each model includes detailed instructions and wiring diagrams for user convenience.

Product Specifications:

  • Valve Material: Brass
  • Ball Seal: PTFE
  • Operating Time: 3-5 Seconds
  • Working Voltage: 9-24V AC/DC
  • Max Power: 2 W
  • Max Torque: 2 Nm
  • Max Medium Pressure: 1.0 Mpa
  • Temperature Range for Flow Medium: 0°C to 90°C
  • Ambient Temperature Range: -10°C to 40°C
  • Enclosure Rating: IP65
  • Life Expectancy: 80,000 to 100,000 Cycles
  • Bore Type: Standard
  • Thread Type: NPT
  • Wiring Type: 3 Wire Setup
