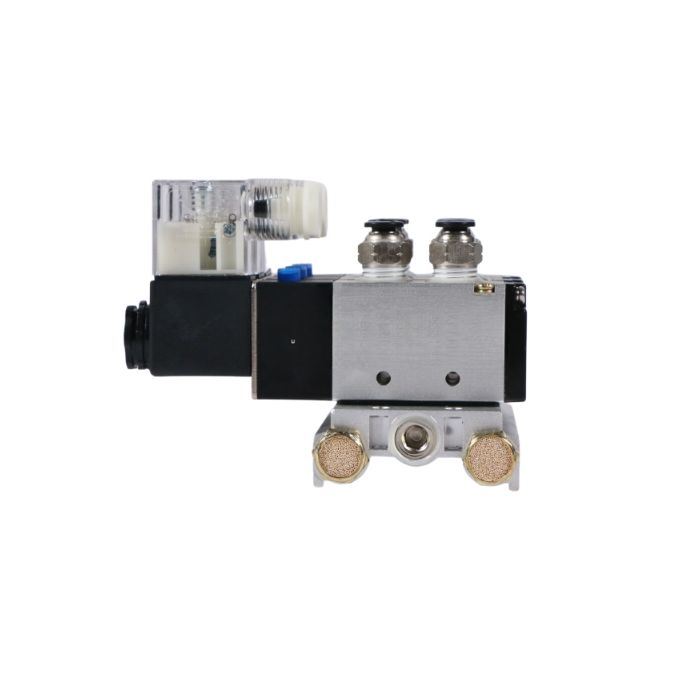

Pneumatic Solenoid Valves Manifold Base, 2 Position 5 Way, DC 24V
This product features a 4V210-08 3 Pneumatic Solenoid Valves with a 2 Position 5 Way Manifold Base. It combines 3 pneumatic solenoid valves with a manifold base to serve as an air-routing switch for pneumatic devices. These valves enable a small signal to control larger devices and act as the interface between electronic controllers and pneumatic systems. Crafted from aluminum alloy, they boast a 1/4" aperture and allow for pneumatic control of position, flow, pressure, and temperature. Widely used across various industries, pneumatic valves are essential components in applications such as Pneumatic Artificial Muscles (PAM) in robotics, automation, and conveyor belt systems in manufacturing. Offering reliability, low power consumption, and extended lifespan, these valves come with prewired connections for easy installation, maintenance, and control.
Specifications:
- Model: 4V210-08
- Valve Type: 2 position 5 way, 3 valves
- Voltage: DC 24V
- Base Diameter: 8mm
- Valve Diameter: 6mm
- Thread Type: NPT
- Operation/ Property: Normally Closed
- Material: Aluminum Alloy
- Size: 1/4"
- Applicable Media: Filtered Air
- Insulation & Protection: Class F; IP 65
- Working Pressure: 0.15 ~ 0.8 Mpa
- Max. Pressure Resistance: 1.2 Mpa
- Direct Operated/ Pilot Operated: Pilot Acting
- Operation Temperature: -5℃ - 50℃
