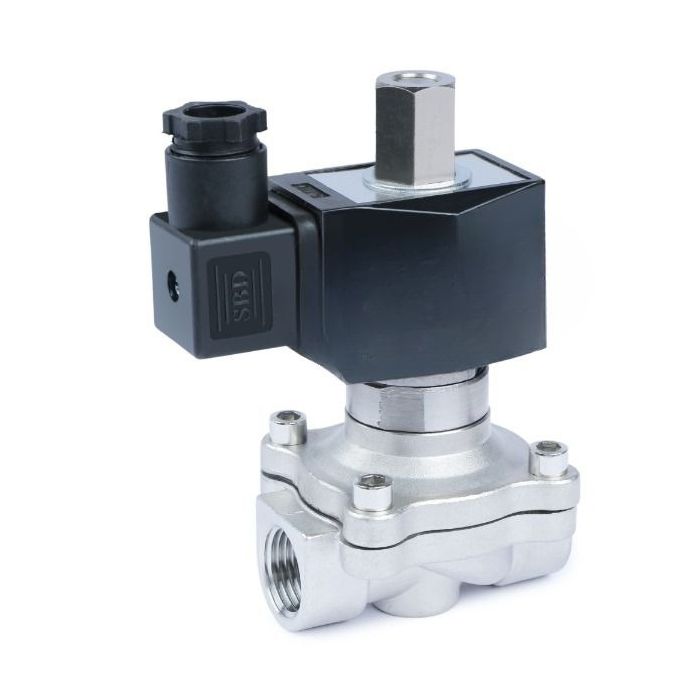

1/2" Stainless Steel Solenoid Valve - 12V DC Normally Open Valve with Viton Seal

$45.99
In stock
SKU
JFSV00108

This solenoid valve is constructed from industrial-grade stainless steel, providing unparalleled corrosion resistance and ease of welding, making it an excellent choice for high-temperature applications. Compatible with diesel fuel, natural gas, air, drinking water, and water-based projects, this versatile solenoid valve is engineered for rapid response, ensuring swift opening or closing in under a second when activated. This guarantees immediate flow control when turning on or off. With proper maintenance and operating conditions, our engineers estimate a life cycle exceeding one million cycles.

In its default state, the solenoid valve employs the magnetic field of the solenoid to move the plunger and seal the orifice, preventing any fluid or gas flow. When energized, it changes state. Equipped with a Viton gasket, known for its chemical inertness and commonly used with gasoline, kerosene, and other organic solvents, this solenoid valve is suitable for a wide range of industries such as water projects, chemical processing, power generation, and healthcare. Its precise fluid control and rapid response make it ideal for applications from brewing systems to automatic irrigation.

Specifications:

  • Size: 1/2"
  • Body Material: Stainless Steel
  • Flow Aperture: 16 mm
  • Gasket / Diaphragm / Seal: VITON
  • Rated voltage: DC 12 V, ± 10%
  • Power rating: 18 W
  • Operation Type: Semi-direct lift valve
  • Operation Mode: Normally Open
  • Operational pressure range: 0 to 101 PSI / 0-0.7 Mpa (for Air, Water); 0 to 72 PSI / 0-0.5 Mpa (for Oil)
  • Flow capacity: 4.8 gallons per minute (GPM) of water at 60℉ with a pressure drop of 1 PSI
  • Operational temperature: 14 - 248 degrees Fahrenheit

OVERHEATING WARNING: Not designed for continuous operation (not a 100% duty cycle). Under normal operation, the solenoid valve will become hot while energized, with the coil reaching a maximum temperature of about 80℃. It fully complies with national standard: JB/T7352-2010. If energized continuously for more than 8 hours, the coil may burn.
