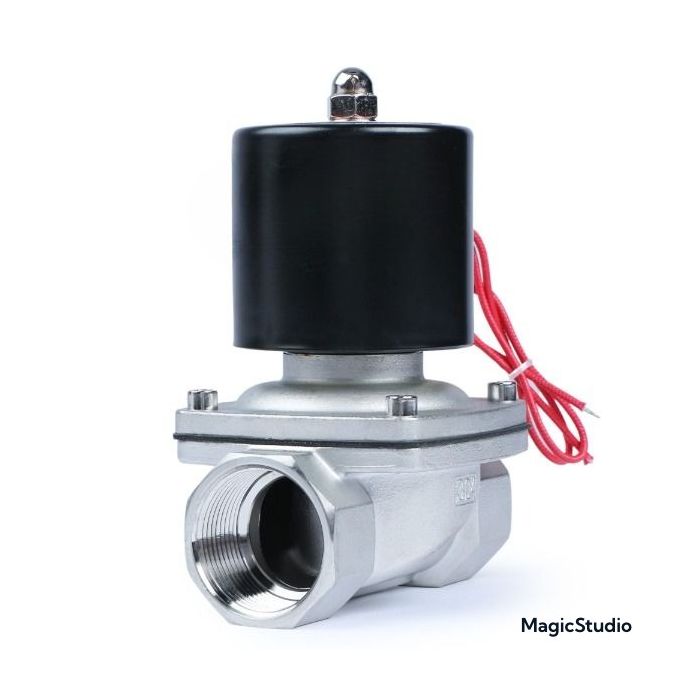

1-1/4" Stainless Steel Electric Solenoid Valve, 110V AC, Normally Closed with Viton Seal

$94.95
In stock
SKU
JFSV00117

These general purpose electric solenoid valves are designed with a high-quality stainless steel body, two-way inlet and outlet ports with 1-1/4" female threaded connections, and a heat and oil resistant Viton gasket. Suitable for a range of applications including hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons such as gasoline, kerosene, or diesel fuel. The IP65 rating ensures resistance to water spray, but for outdoor installations, it is recommended to provide additional protective housing. Please note that these valves are not suitable for use underwater.

Customers often choose these valves for DIY projects, moderate temperature environments, handling harsh chemicals, flow control in irrigation or reverse osmosis systems, as well as propane gas flow regulation.

Specifications:

  • Pipe Size: 1-1/4" (1.25")
  • Flow Aperture: 35 mm
  • Body Material: Stainless Steel
  • Gasket / Diaphragm / Seal: Viton
  • Operation Type: Semi-Direct Lift Valve
  • Operation Mode: Normally Closed
  • Voltage: AC 110V ± 10%
  • Power rating: 27.5 VA
  • Suitable Media: Air, water, oil, diesel fuel, kerosene, etc.
  • Operational pressure range: Air/Water/Diesel fuel/Kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar (0 to 72 PSI)
  • Flow capacity: 24 GPM of water at 60°F with a pressure drop of 1 PSI
  • Flow value: 24 Cv
  • Temperature, Minimum: 14°F (-10°C)
  • Temperature Maximum: 248°F (120°C)

OVERHEATING WARNING: These solenoid valves are not designed for continuous operation (not a 100% duty cycle). Under normal conditions, the coil will reach a maximum temperature of about 176°F (80°C), compliant with national standard: JB/T7352-2010. Continuous energization for more than 8 hours may cause the coil to burn. Please refer to the Instruction Manual for further guidance.

``
