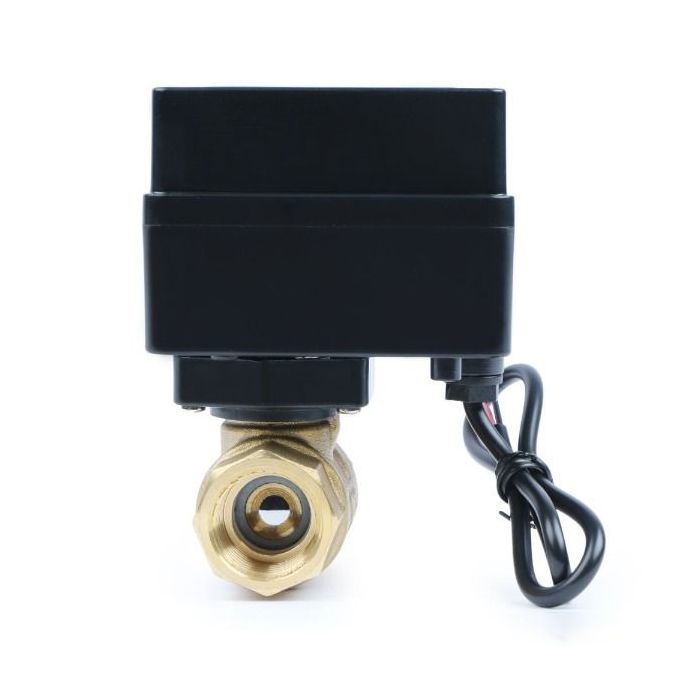

1/2" Brass Motorized Electric Ball Valve with Indicator Lights - 2-Wire Auto Return, Normally Closed, 9-36V AC/DC

$26.97
In stock
SKU
JFMBV00007

The MBV Series Motorized Ball Valve is a second-generation motorized ball valve featuring 3 indicator lights - open, closed, and stuck. These indicator lights illuminate under the respective working conditions to inform the user of the valve’s current state. The two-wire auto return design simplifies the wiring process and improves operation convenience.

The valve actuates with 9-36V of DC power, opening fully in 6-10 seconds when energized. It automatically returns to the closed position when the power shuts off. Negligible power is used once fully open, allowing the indicator lights to continue operating. This environmentally friendly feature sets it apart from most solenoid valves.

Specifications:

  • Valve Material: Brass
  • Size: 1/2 inch
  • Seal: PTFE
  • N.C./N.O.: Normally Closed
  • Close/Open Time: 6-10 Seconds
  • Working Voltage: 9-36V AC/DC
  • Max Power: 2 W
  • Max Torque: 2 N m
  • Max Pressure: 1.0Mpa
  • Temperature range for Flow Medium: 0°C to 90°C
  • Ambient Temperature Range: -5°C to 40°C
  • Enclosure Rating: IP65
  • Bore Type: Standard
  • Thread Type: NPT
  • Wiring Type: 2 Wire Auto Return
