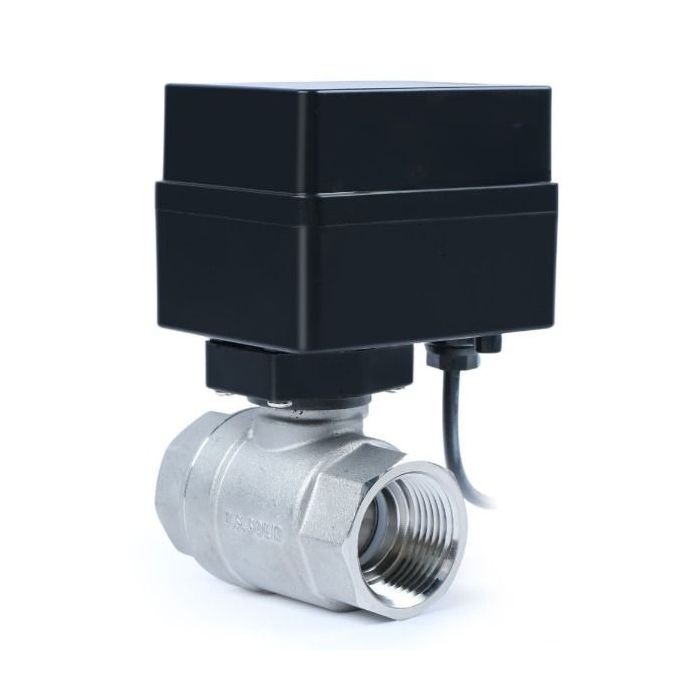

3/4" Stainless Steel Motorized Electric Ball Valve with Indicator Lights, Auto Return Function, Normally Open, 9-36V AC/DC

$32.97
In stock
SKU
JFMBV00004

The MBV Series Motorized Ball Valve is a second-generation motorized ball valve with rich design experience and customer feedback incorporated into its development. This series features 3 indicator lights - open, closed, and stuck, which illuminate under the respective working conditions to inform the user and prevent false openings or closings.

The two-wire auto return design simplifies the wiring process and enhances operational convenience. With its normally open (N/O) design, this valve is suitable for applications that require being kept open for extended periods.

Operating with 9-36V of DC power, the valve can fully close in 6-10 seconds. When de-energized, it automatically returns to the open position. Minimal power is consumed when fully closed, allowing the indicator lights to remain operational. This makes it a more environmentally friendly option compared to most solenoid valves.

Specifications:

  • Valve Material: Stainless Steel
  • Size: 3/4"
  • Seal: PTFE
  • N.C./N.O.: Normally Open
  • Close/Open Time: 6-10 Seconds
  • Working Voltage: 9-36V AC/DC
  • Max Power: 2 W
  • Max Torque: 2 N m
  • Max Pressure: 1.0Mpa
  • Temperature range for Flow Medium: 0°C to 90°C
  • Ambient Temperature Range: -5°C to 40°C
  • Enclosure Rating: IP65
  • Bore Type: Standard
  • Thread Type: NPT
  • Wiring Type: 2 Wire Auto Return
