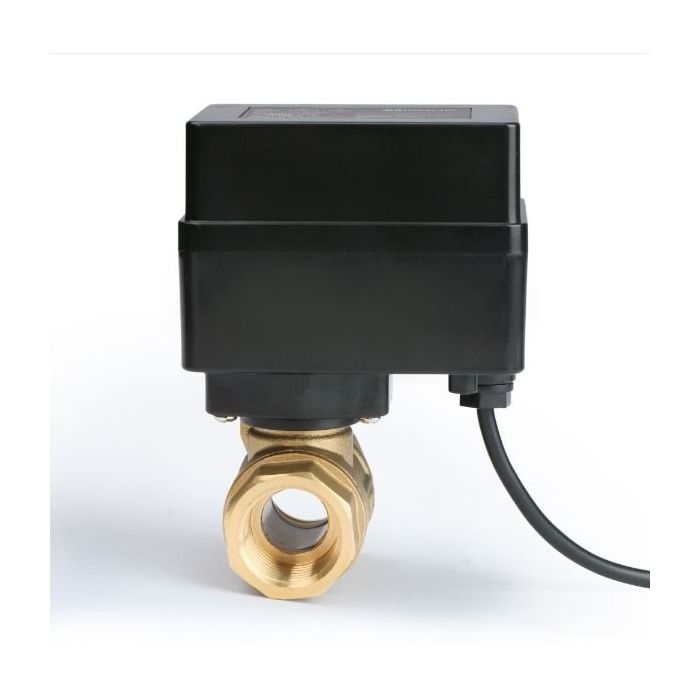

1/2" Brass Motorized Electric Ball Valve with Indicator Lights - Auto Return, Normally Open, 9-36V AC/DC
The MBV Series Motorized Ball Valve is a second-generation motorized ball valve that features 3 indicator lights - open, closed, and stuck. These indicator lights inform the user of the valve’s current state, preventing false opening or closing. The two-wire auto return design simplifies the wiring process and enhances operational convenience. The valve actuates with 9-36V of DC power, closing fully in 6-10 seconds. As a normally open (N/O) ball valve, it automatically returns to the open position when power shuts off. The negligible power consumption when fully closed allows the indicator lights to remain on, making it eco-friendly.
Specifications:
- Valve Material: Brass
- Size: 1/2 inch
- Seal: PTFE
- N.C./N.O.: Normally Open
- Close/Open Time: 6-10 Seconds
- Working Voltage: 9-36V AC/DC
- Max Power: 2 W
- Max Torque: 2 N m
- Max Pressure: 1.0Mpa
- Temperature range for Flow Medium: 0°C to 90°C
- Ambient Temperature Range: -5°C to 40°C
- Enclosure Rating: IP65
- Bore Type: Standard
- Thread Type: NPT
- Wiring Type: 2 Wire Auto Return
