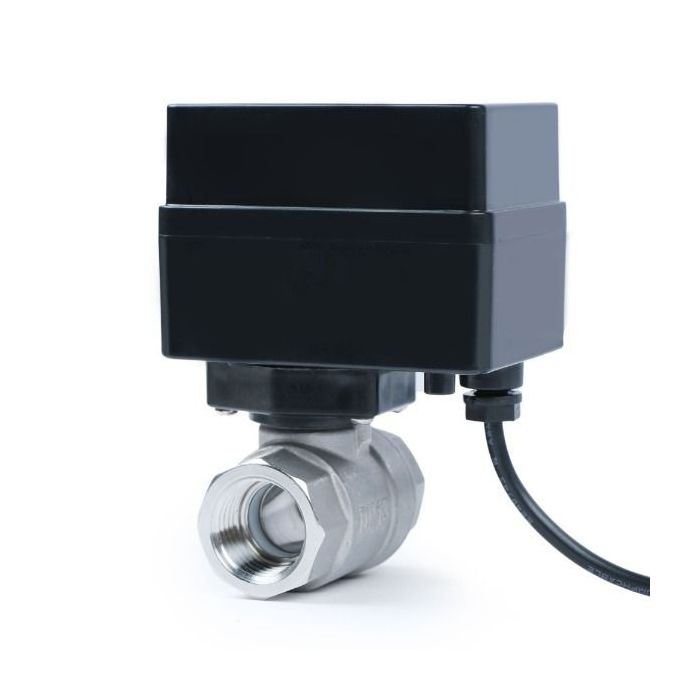

1/2" Motorized Stainless Steel Electric Ball Valve with 3 Indicator Lights - 2 Wire Auto Return, Normally Open, 9-36V AC/DC
The MBV Series Motorized Ball Valve is a second-generation of motorized ball valves. After absorbing rich design experience and customer feedback from a previous series, the new MBV series was developed. These motorized ball valves feature 3 indicator lights - open, closed, and stuck, illuminating under different working conditions to inform the user of the valve’s current state.
The two-wire auto return design simplifies the wiring process and enhances operational convenience. The normally open (N/O) design is particularly practical for situations where it needs to remain open for an extended period.
Operating with 9-36V of DC power, the valve closes fully in 6-10 seconds upon energization. Being a normally open (N/O) ball valve, it automatically returns to the open position when the power is cut off, utilizing negligible power once fully closed. This environmentally friendly feature sets it apart from many solenoid valves.
Specifications:
- Valve Material: Stainless Steel
- Size: 1/2 inch
- Seal: PTFE
- N.C./N.O.: Normally Open
- Close/Open Time: 6-10 Seconds
- Working Voltage: 9-36V AC/DC
- Max Power: 2 W
- Max Torque: 2 N m
- Max Pressure: 1.0Mpa
- Temperature range for Flow Medium: 0°C to 90°C
- Ambient Temperature Range: -5°C to 40°C
- Enclosure Rating: IP65
- Bore Type: Standard
- Thread Type: NPT
- Wiring Type: 2 Wire Auto Return
