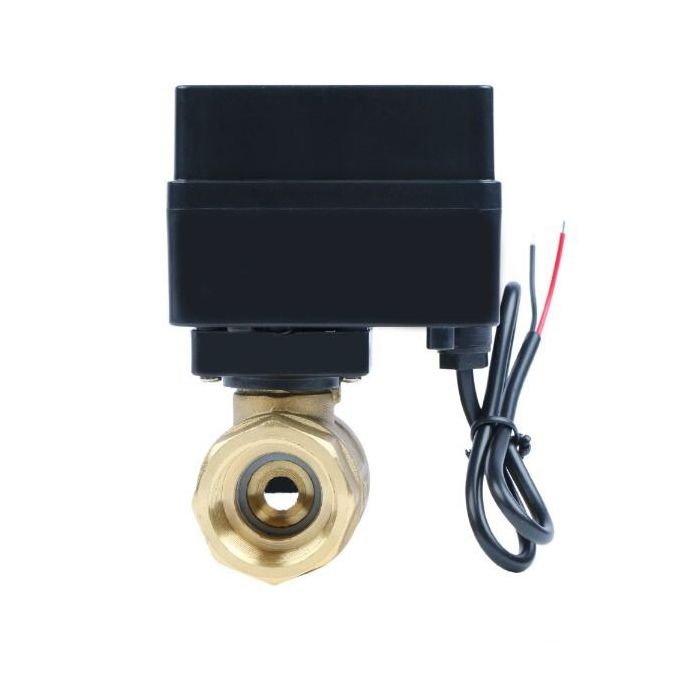

3/4" Brass Motorized Ball Valve with Indicator Lights - Auto Return, Normally Closed (9-36V AC/DC)
The MBV Series Motorized Ball Valve is a second-generation motorized ball valve that features 3 indicator lights - open, closed, and stuck. These indicator lights will illuminate under the respective working conditions to inform the user of the valve’s current state and prevent false opening or false closing. The two-wire auto return design simplifies the wiring process and improves the convenience of operation.
The valve actuates with 9-36V of DC power, opening fully in 6-10 seconds when energized. Being a normally closed ball valve, it automatically returns to the closed position when the power shuts off. It consumes negligible power once fully open, enabling the indicator lights to remain functional. This feature makes it an environmentally friendly option compared to most solenoid valves.
Specifications
- Valve Material: Brass
- Size: 3/4"
- Seal: PTFE
- N.C./N.O.: Normally Closed
- Close/Open Time: 6-10 Seconds
- Working Voltage: 9-36V AC/DC
- Max Power: 2 W
- Max Torque: 2 N m
- Max Pressure: 1.0Mpa
- Temperature range for Flow Medium: 0°C to 90°C
- Ambient Temperature Range: -5°C to 40°C
- Enclosure Rating: IP65
- Bore Type: Standard
- Thread Type: NPT
- Wiring Type: 2 Wire Auto Return
