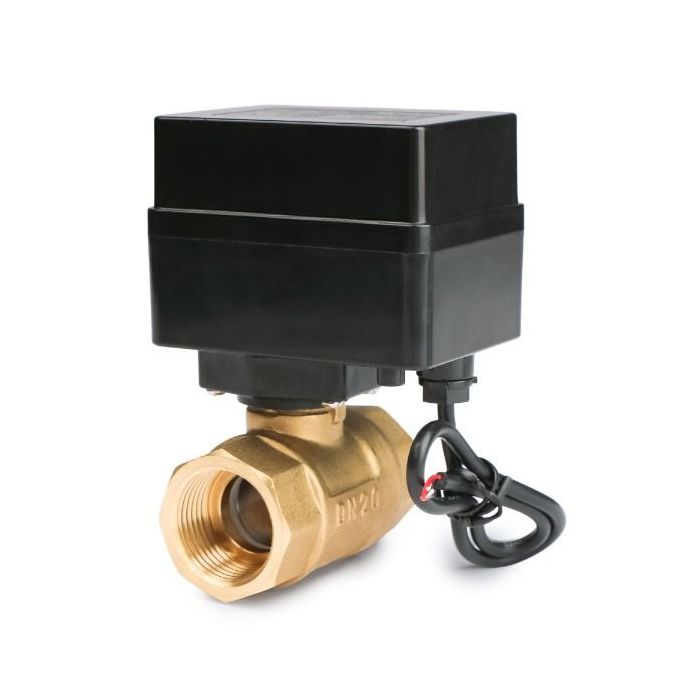

Motorized Brass Electric Ball Valve with Indicator Lights - 2 Wire Auto Return, Normally Open, 9-36V AC/DC

$26.97
In stock
SKU
JFMBV00001

The MBV Series Motorized Ball Valve is a second-generation of motorized ball valves that feature 3 indicator lights - open, closed and stuck. These indicator lights will illuminate under the respective working conditions to inform the user of the valve’s current state and prevent false opening or false closing.

The two-wire auto return design simplifies the wiring process and improves the convenience of operation. Additionally, the normally open (N/O) design is more practical for use cases that need to be kept open for a long time.

The valve actuates with 9-36V of DC power and will close fully in 6-10 seconds when energized. As a normally open (N/O) ball valve, it automatically returns to the open position when the power shuts off. Negligible power is used once fully closed, allowing the indicator lights to remain in operation, making it an environmentally friendly option compared to most solenoid valves.

Specifications:

  • Valve Material: Brass
  • Size: 3/4"
  • Seal: PTFE
  • N.C./N.O.: Normally Open
  • Close/Open Time: 6-10 Seconds
  • Working Voltage: 9-36V AC/DC
  • Max Power: 2 W
  • Max Torque: 2 N m
  • Max Pressure: 1.0Mpa
  • Temperature range for Flow Medium: 0°C to 90°C
  • Ambient Temperature Range: -5°C to 40°C
  • Enclosure Rating: IP65
  • Bore Type: Standard
  • Thread Type: NPT
  • Wiring Type: 2 Wire Auto Return
