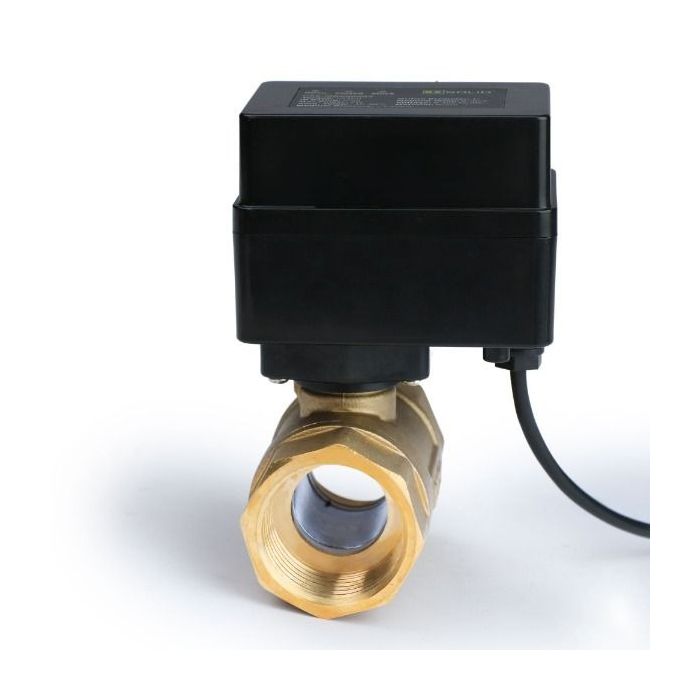

1" Brass Motorized Ball Valve with 3 Indicator Lights - 2 Wire Auto Return, Normally Open, 9-36V AC/DC
The MBV Series Motorized Ball Valve is a second-generation motorized ball valve that offers advanced features for convenient operation. This motorized ball valve incorporates design experience and customer feedback to provide an improved user experience. It features 3 indicator lights - open, closed, and stuck - which illuminate under corresponding conditions to keep users informed of the valve's status and prevent any errors.
The two-wire auto return design simplifies the wiring process, making it easier to operate. The normally open (N/O) design is suitable for applications requiring continuous open status. The valve operates on 9-36V of DC power, closing fully within 6-10 seconds when energized. Once power is cut off, the ball valve automatically returns to the open position, consuming minimal power and ensuring the indicator lights remain operational.
This environmentally-friendly option is characterized by its efficiently designed features. The brass valve material, PTFE seal, and NPT thread type ensure durability and reliable performance. Key specifications include a 1-inch size, N/O close/open time of 6-10 seconds, working voltage of 9-36V AC/DC, and an IP65 enclosure rating. The valve is suitable for a temperature range of 0°C to 90°C for flow medium and -5°C to 40°C ambient temperature.
Specifications:
- Valve Material: Brass
- Size: 1 inch
- Seal: PTFE
- N.C./N.O.: Normally Open
- Close/Open Time: 6-10 Seconds
- Working Voltage: 9-36V AC/DC
- Max Power: 2 W
- Max Torque: 2 N m
- Max Pressure: 1.0Mpa
- Temperature range for Flow Medium: 0°C to 90°C
- Ambient Temperature Range: -5°C to 40°C
- Enclosure Rating: IP65
- Bore Type: Standard
- Thread Type: NPT
- Wiring Type: 2 Wire Auto Return
