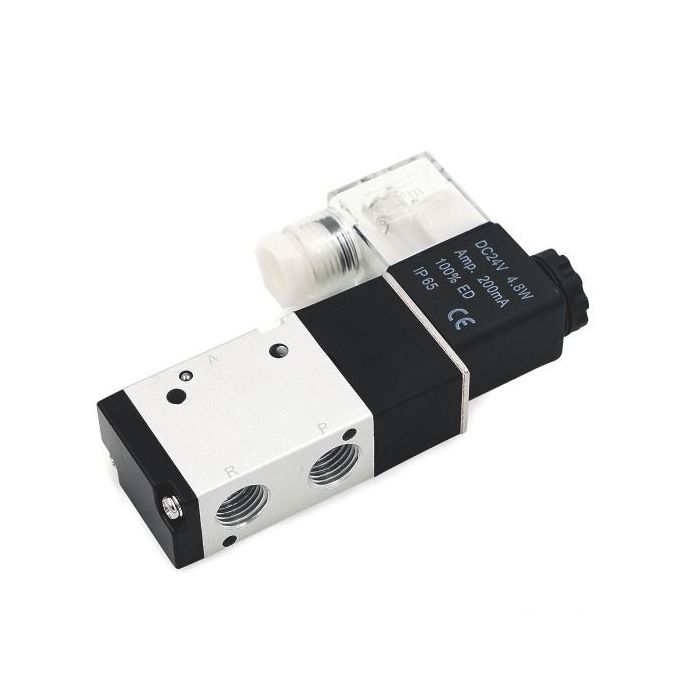

1/4" DC 24 V Pneumatic Electric Solenoid Valve 3 Way 2 Position, NPT
The 1/4" NPT 3 Way 2 Position Pneumatic Electric Solenoid Valve serves as an essential switch for directing air to various pneumatic devices, commonly actuators, enabling precise control of large devices with a small signal. It acts as a crucial interface between electronic controllers and pneumatic systems, allowing pneumatic regulation of position, flow, pressure, and temperature.
This valve, classified as a 3/2 valve due to its three port connections and two flow positions design, maintains one valve seal open and the other closed in the de-energized state. Upon energization of the coil, the mode switches, enabling compressed air to flow from port 1 to port 2 through the valve, or blocking port 1 while port 2 exhausts via port 3. Crafted from sturdy aluminum alloy and possessing a 1/4" aperture, this valve delivers reliable performance.
Industries across the board employ pneumatic valves for various applications. Aircrafts rely on pneumatic valves to manage pressure and airflow of hot engine air for windshield anti-icing and rain removal. Similarly, the food and beverage sector utilizes pneumatic valves in processes involving food and beverage production, dispensing, and preservation. Notably, these pneumatic valves are lauded for their reliability, energy efficiency, and extended lifespan. Their prewired connections simplify installation, maintenance, and operational control.
Specifications
- Valve Type: 2 Position 3 Way
- Thread Type: NPT
- Operation/ Property: Normally Closed
- Material: Aluminum Alloy
- Size: 1/4"
- Voltage: DC 24 V
- Applicable Media: Filtered Air
- Power Rating (W): 4
- Aperture (mm): 16
- Flow Value (Cv): 0.89
- Insulation & Protection: Class F; IP 65
- Working Pressure: 0.15 ~ 0.8 Mpa
- Direct Operated/ Pilot Operated: Pilot Operated
- Operation Temperature: -5°C - 50°C
