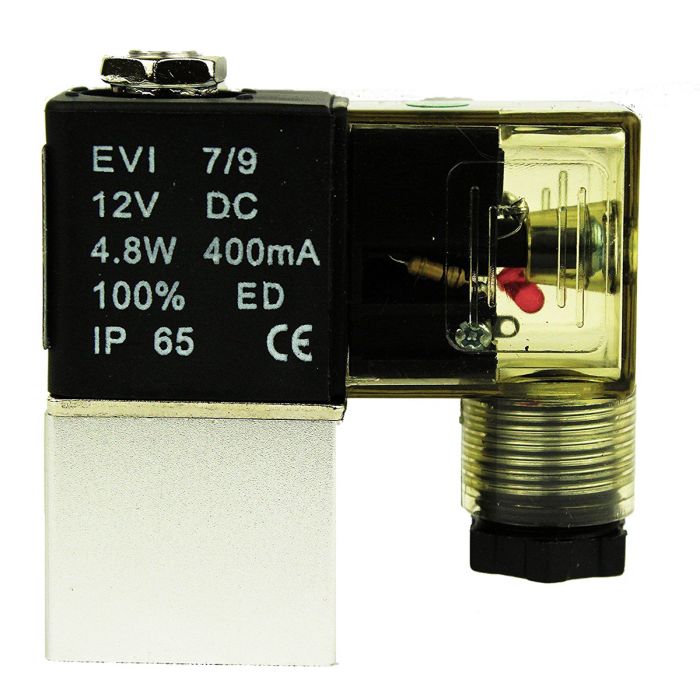

1/4" NPT 2 Way 2 Position Pneumatic Electric Solenoid Valve DC 12V, Normally Closed

The 1/4" Female NPT 2 Way 2 Position Pneumatic Electric Solenoid Valve is an advanced pneumatic valve technology. It is a 2/2 valve with 2 ports and 2 flow positions, allowing it to open or close air flow. This valve operates on DC 12V, is made of aluminum alloy, and features a 1/4” Female NPT aperture. With low energy consumption and a compact size, this valve stays cool during operation. These pneumatic valves are known for their reliability, low power usage, and long lifespan. They come with prewired connections that make installation, maintenance, and control a breeze.

Specification:

• Model: PSV00045
• Rated Voltage: 12V DC, ±10%
• Power Rating: 4.5 W
• Valve Type: 2 Position 2 Way
• Size: 1/4"
• Aperture: 2.5 mm
• Flow Value: 0.23 Cv
• Material: Aluminum Alloy
• Operation/ Property: Normally Closed
• Applicable Media: Filtered Air
• Insulation & Protection: Class F; IP 65
• Working Pressure: 0.15 ~ 0.8 Mpa
• Max. Pressure Resistance: 1.2 Mpa
• Operation Temperature: -5°C ~ 60°C
• Direct Operated/ Pilot Operated: Direct Acting
• Thread Type: NPT
