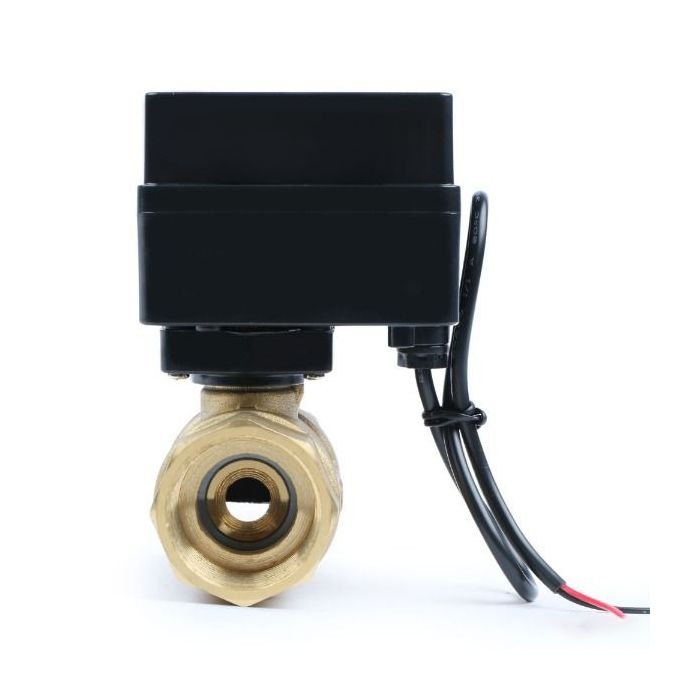

1" Brass Motorized Ball Valve with 3 Indicator Lights - 2 Wire Auto Return, Normally Closed, 9-36V AC/DC
The MBV Series Motorized Ball Valve is a second-generation motorized ball valve that offers advanced features to enhance user experience. This motorized ball valve comes with three indicator lights - open, closed, and stuck - to provide clear visibility of the valve's status and prevent any potential errors.
The two-wire auto return design simplifies the wiring process and makes operation more convenient. This motorized ball valve can be actuated with 9-36V of DC power, opening fully within 6-10 seconds when energized. As a normally closed ball valve, it automatically returns to the closed position when power is shut off.
Featuring a brass construction and PTFE seal, this durable valve is suitable for various applications. It consumes minimal power once fully open, enabling the indicator lights to remain on without significant energy usage. Additionally, the environmentally friendly design makes it a preferable choice over traditional solenoid valves.
Specifications:
- Valve Material: Brass
- Size: 1 inch
- Seal: PTFE
- N.C./N.O.: Normally Closed
- Close/Open Time: 6-10 Seconds
- Working Voltage: 9-36V AC/DC
- Max Power: 2 W
- Max Torque: 2 N m
- Max Pressure: 1.0Mpa
- Temperature range for Flow Medium: 0°C to 90°C
- Ambient Temperature Range: -5°C to 40°C
- Enclosure Rating: IP65
- Bore Type: Standard
- Thread Type: NPT
- Wiring Type : 2 Wire Auto Return
