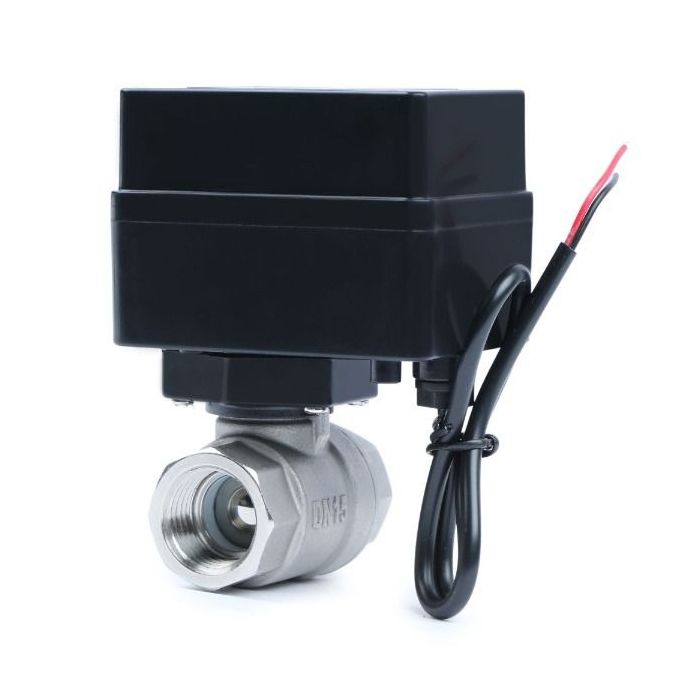

Stainless Steel Motorized Ball Valve with 3 Indicator Lights - 2-Wire Auto Return, Normally Closed, 9-36V AC/DC
Motorized Ball Valve Series
The MBV Series Motorized Ball Valve is a second-generation product on the market. The design of this series has been enhanced based on customer feedback and design experience from the previous MSV series. The motorized ball valves feature indicator lights that indicate open, closed, and stuck conditions, ensuring users are informed of the valve's status to prevent any operational errors.
The two-wire auto-return design of the valve simplifies the wiring process and enhances operational convenience. With a power requirement of 9-36V DC, the valve opens fully within 6-10 seconds once energized. As a normally closed ball valve, it automatically returns to the closed position when the power supply is turned off. Additionally, the valve consumes negligible power when fully open, maintaining the functionality of the indicator lights.
The valve is made of stainless steel, with a PTFE seal, operating as a normally closed valve. It is suitable for a temperature range of 0°C to 90°C and has an IP65 enclosure rating. With a 1/2 inch size, the valve requires NPT thread type for installation.
Specifications:
- Valve Material: Stainless Steel
- Size: 1/2 inch
- Seal: PTFE
- N.C./N.O.: Normally Closed
- Close/Open Time: 6-10 Seconds
- Working Voltage: 9-36V AC/DC
- Max Power: 2 W
- Max Torque: 2 N m
- Max Pressure: 1.0Mpa
- Temperature Range for Flow Medium: 0°C to 90°C
- Ambient Temperature Range: -5°C to 40°C
- Enclosure Rating: IP65
- Bore Type: Standard
- Thread Type: NPT
- Wiring Type: 2 Wire Auto Return
Don't miss the informative video on the product for a better understanding of its operation.
