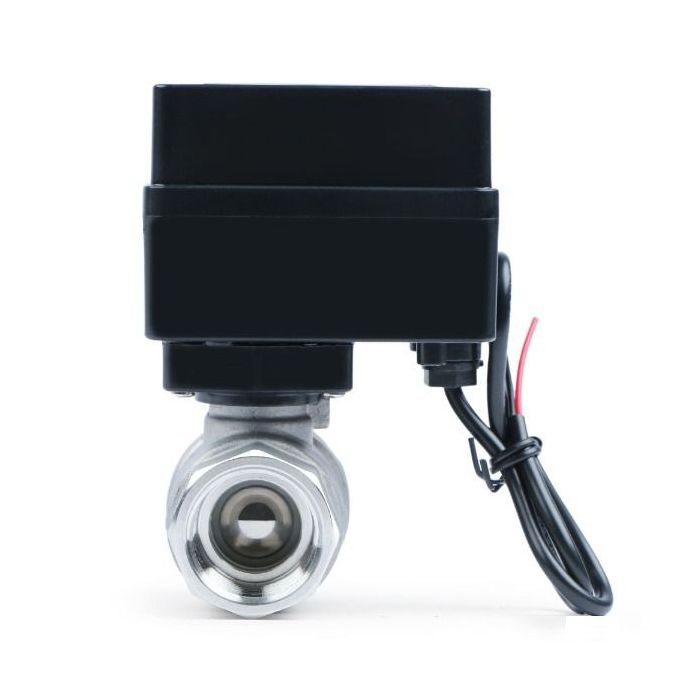

3/4" Stainless Steel Motorized Electric Ball Valve - with 3 Indicator Lights - 2 Wire Auto Return, Normally Closed, 9-36V AC/DC

The MBV Series Motorized Ball Valve is a second-generation motorized ball valve with rich design experience and customer feedback. This series features three indicator lights - open, closed, and stuck - to provide users with information on the valve's current state. The two-wire auto return design simplifies the wiring process and enhances convenience.

Operating with 9-36V of DC power, this valve fully opens in 6-10 seconds when energized and automatically returns to the closed position when power is shut off. With negligible power consumption when fully open, it is an environmentally friendly option. The valve is made of stainless steel, with a size of 3/4", PTFE seal, and a normally closed configuration.

Specifications:

• Valve Material: Stainless Steel
• Size: 3/4"
• Seal: PTFE
• N.C./N.O.: Normally Closed
• Close/Open Time: 6-10 Seconds
• Working Voltage: 9-36V AC/DC
• Max Power: 2 W
• Max Torque: 2 N m
• Max Pressure: 1.0Mpa
• Temperature range for Flow Medium: 0°C to 90°C
• Ambient Temperature Range: -5°C to 40°C
• Enclosure Rating: IP65
• Bore Type: Standard
• Thread Type: NPT
• Wiring Type: 2 Wire Auto Return
