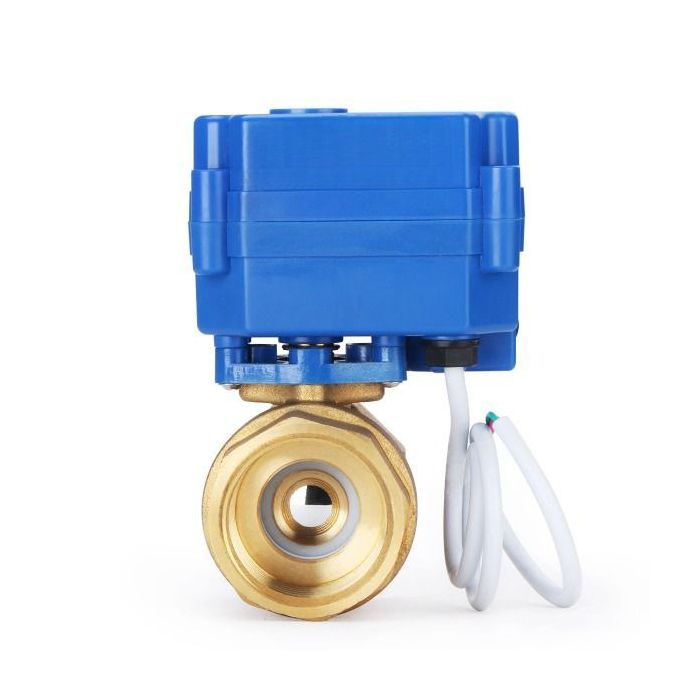

1" Brass Motorized Ball Valve with Standard Port, 9-24 V AC/DC, 2 Wire Auto Return
Motorized ball valves are essential components for a wide range of applications. This specific model operates with impressive speed, opening and closing in just 3-5 seconds, all while consuming minimal energy. Unlike many solenoid valves that constantly require energy when in a new position, motorized ball valves only expend energy during the transition from open to close, or vice versa. The 2-wire auto return design is particularly useful in scenarios where the valve must be closed in the event of a power outage. Simply energize the valve to open it, and once fully opened, it will maintain its position with minimal energy usage. To close the valve, turn off the power. This valve is user-friendly as it can be controlled by a simple on-off switch, staying open when powered and automatically closing when power is turned off or lost.
Specifications:
- Valve Material: Brass
- Ball Seal: PTFE
- Operating Time: 3-5 Seconds
- Working Voltage: 9-24V AC/DC
- Max Power: 5 W
- Max Torque: 2 N m
- Max Medium Pressure: 1.0 Mpa
- Temperature Range for Flow Medium: 0°C to 90°C
- Ambient Temperature Range: -10°C to 40°C
- Enclosure Rating: IP65
- Life Expectancy: 80,000 to 100,000 Cycles
- Bore Type: Standard
- Thread Type: NPT
- Wiring Type: 2 Wire Auto Return
