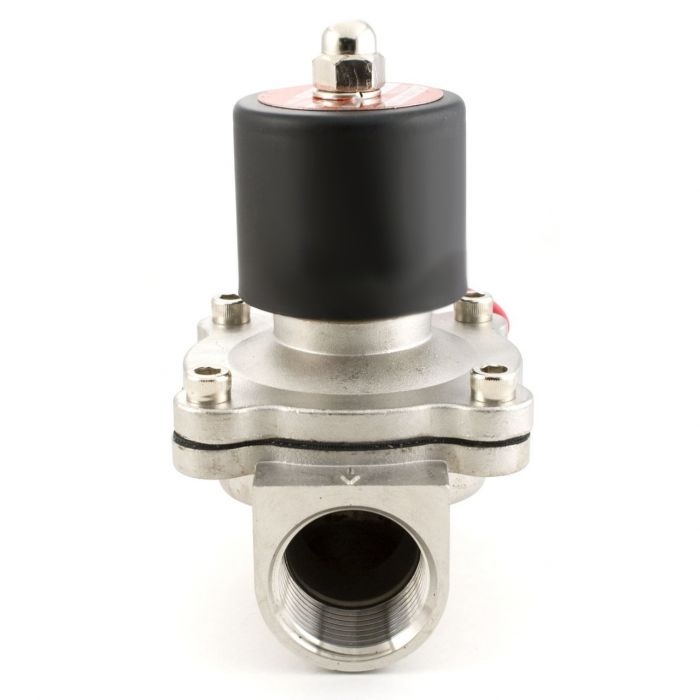

Electric Solenoid Valve- 1" 24V AC Stainless Steel Body Normally Closed with VITON SEAL
Our normally closed (N/C) electric solenoid valve is designed with a high-quality stainless steel body, two-way inlet and outlet ports featuring one inch (1") female threaded (NPT) connections, and a durable Viton gasket that is resistant to heat and oil. It can be used with hot or cold water, gas, air, very low viscosity fluids (< 20 cst), as well as oils and hydrocarbons such as gasoline, kerosene, or diesel fuel.
The solenoid valves are rated IP65, making them capable of withstanding water spray. For permanent outdoor installation, we recommend enclosing the valves in protective housing. Please note that these valves are not suitable for underwater use.
Customers appreciate this general purpose valve for various applications including DIY projects, moderate temperature conditions, handling harsh chemicals, flow control in irrigation systems, reverse osmosis systems, or regulating propane gas flow.
- Pipe Size: 1"
- Flow Aperture: 25 mm
- Body Material: Stainless Steel
- Gasket / Diaphragm / Seal: VITON
- Operation Type: Semi-direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: AC 24V ± 10%
- Power rating: 19 VA
- Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
- Operational pressure range: Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar(0 to 72 PSI)
- Flow capacity: 12 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
- Flow value: 12 Cv
- Temperature, Minimum: 14°F (-10°C)
- Temperature, Maximum: 248°F (120°C)
OVERHEATING WARNING: This valve is not designed for continuous operation (not a 100% duty cycle). When energized, the solenoid valve will become hot under usual operating conditions. The coil will reach a maximum temperature of around 176°F (80℃), which complies with the national standard: JB/T7352-2010. Continuous energization for more than 8 hours may cause the coil to burn.
```
