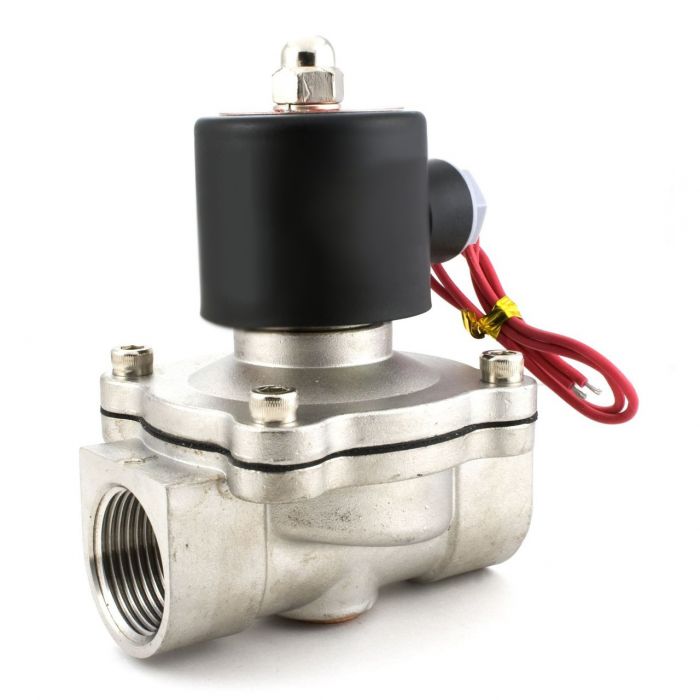

Electric Solenoid Valve- 1" 12V DC Stainless Steel Body Normally Closed, VITON SEAL
This electric solenoid valve features a high-quality stainless steel body with two-way inlet and outlet ports having one inch (1") female threaded connections. It is equipped with a heat and oil resistant Viton gasket, making it suitable for a variety of applications including hot or cold water, gas, air, low viscosity fluids (< 20 cst), oils, and hydrocarbons like gasoline, kerosene, or diesel fuel.
With an IP65 rating, these solenoid valves can withstand water spray, but it is recommended to enclose them in protective housing when permanently installed outdoors. They are not suitable for underwater use. Customers commonly choose this valve for DIY projects, moderate temperature applications, handling harsh chemicals, flow control in irrigation systems, reverse osmosis systems, or regulating propane gas flow.
- Pipe Size: 1"
- Flow Aperture: 25 mm
- Body Material: Stainless Steel
- Gasket / Diaphragm / Seal: Viton
- Operation Type: Semi-Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: DC 12V ± 10%
- Power rating: 20W
- Suitable Media: Air, water, oil, Diesel fuel, kerosene etc.
- Operational pressure range:
- Air/Water/Diesel fuel/Kerosene: 0-7 Bar (0 to 101 PSI)
- Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 12 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
- Flow value: 12 Cv
- Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
- Temperature Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
This solenoid valve is also available with a brass body (Item #: USS2-00003). Please note that it is not designed for continuous operation, with a maximum temperature of about 176°F (80℃) when energized under normal conditions. Continuous energization for over 8 hours may cause the coil to burn.
```
