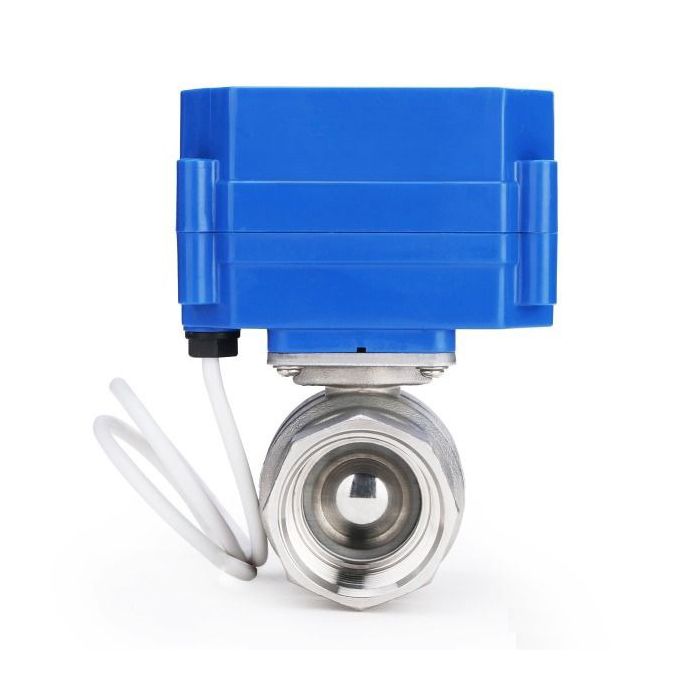

1" Stainless Steel Electric Motorized Ball Valve with Full Port, 9-24 V AC/DC, 2-Wire Auto Return

$27.51
In stock
SKU
JFMSV00009

Motorized ball valves are an essential component in a wide range of applications. This particular model boasts a swift opening and closing action of 3-5 seconds, requiring minimal energy to maintain its new position. This sets it apart from many solenoid valves, which typically consume continuous energy while in a new position. Unlike solenoid valves, motorized ball valves only use energy during the transition from open to close, or vice versa.

The 2-wire auto return feature of this valve is particularly useful in scenarios where the valve must be closed in the event of a power outage. It can be energized to open and then remain connected with minimal energy consumption once fully open. To close the valve, simply cut off power. Operating this valve is straightforward with a simple on/off switch - when powered on, it stays open, and it automatically closes when turned off or in case of power loss.

Specifications
U.S. Solid Model: USS-MSV00009 (Normally-Open Version: JFMSV00073), (25-Pack Version:JFMSV00103)
Valve Material : SS304
Ball Seal: PTFE
Operating Time : 6-8 Seconds
Working Voltage : 9-24V AC/DC
Max Power : 5 W
Max Torque : 6 N m
Max Medium Pressure : 1.0 Mpa
Temperature Range for Flow Medium : 0°C to 90°C
Ambient Temperature Range : -5°C to 40°C
Enclosure Rating : IP65
Life Expectancy : 80,000 to 100,000 Cycles
Bore Type : Full
Thread Type : NPT
Wiring Type : 2 Wire Auto Return
